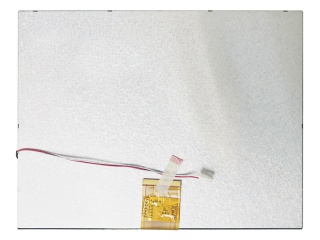

| Uimhir Pháirt | TM104SDHG30-71 |
| Branda | TIANMA |
| Méid | 10.4 |
| Iarratas | Industrial Automotiv |
| Rún | 800×600 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K/16.2M |
| Cúlsolas | WLED |
| Comhéadan | Parallel |
| branda | TIANMA |
| Mionsamhail | TM104SDHG30-71 |
| méid trasnánach | 10.4 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×600 [SVGA] 96PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 211.2(H)×158.4(V) mm |
| imlíne dim. | 228.4(H)×175.4(V) ×6.5(D) mm |
| limistéar bezel | 214.2(H)×162.5(V) mm |
| cóireáil | Antiglare, Hard coating (3H) |
| luminance | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| treo amharc | 12 o'clock |
| am freagartha | 10/15 (Typ.)(Tr/Td) |
| uillinn féachana | 70/70/60/70 (Typ.)(CR≥10) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| dath tacaíochta | 262K/16.2M 50% NTSC |
| foinse solais | WLED [3S12P] , 30K hours , W/O Driver |
| meáchan | 360g |
| deartha le haghaidh | Industrial Automotive Display |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| soláthar leictreachas | 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| A104SN03 V1 | AUO | 10.4 | 800×600 |
| G104S1-L01 | Innolux | 10.4 | 800×600 |
| LP104S3 | LG Display | 10.4 | 800×600 |
| LQ104S1LG31 | SHARP | 10.4 | 800×600 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| LQ10W03 | SHARP | 10.4 | 1024×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| TM104SDH01 | Tianma | 10.4 | 800×600 |
| TM104SDH02 | Tianma | 10.4 | 800×600 |
| TM104SDHG30 | Tianma | 10.4 | 800×600 |
