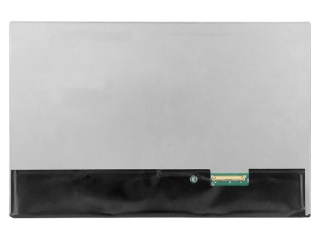

| Uimhir Pháirt | TM101JDHG38 |
| Branda | TIANMA |
| Méid | 10.1 |
| Iarratas | Industrial Medical I |
| Rún | 1280×800 |
| Comhdhéanamh | LCM, a-Si TFT-LCD |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | 6S5P |
| Comhéadan | LVDS |
| monaróir | TIANMA |
| ainm samhail | TM101JDHG38 |
| méid scáileáin | 10.1 inch |
| cineál scáileáin | LCM, a-Si TFT-LCD |
| uimhir picteilín | 1280(RGB)×800 (WXGA) 149PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 216.96 × 135.6 (H×V) |
| imlíne (mm) | 231.22 × 150.6 × 6.6 (H×V×D) |
| limistéar bezel (mm) | 219.96 × 138.6 (H×V) |
| cóireáil | Hard coating |
| luminance | 400 cd/m² (Typ.) |
| cóimheas codarsnachta | 800 : 1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| freagra | 25 (Typ.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | SFT, Normally Black, Transmissive |
| doimhneacht dath | 262K/16.7M 50% NTSC |
| cúlsolas | 6S5P WLED , 30K hours , With LED Driver |
| mais | 276g |
| a úsáidtear le haghaidh | Industrial Medical Imaging VOIP Phone |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| cineál comhartha | LVDS (1 ch, 6/8-bit) , Connector 40 pins |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
