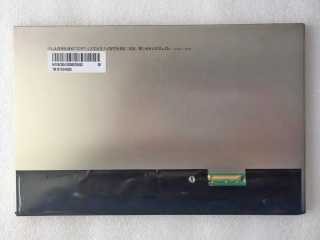

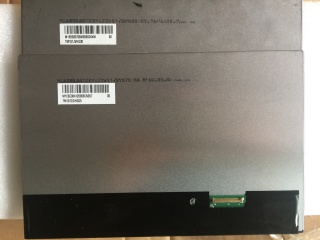

| Uimhir Pháirt | TM101DDHG05 |
| Branda | TIANMA |
| Méid | 10.1 |
| Iarratas | Industrial |
| Rún | 1024×600 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | |
| branda | TIANMA |
| méid trasnánach | 10.1 inch |
| formáid picteilín | 1024(RGB)×600 [WSVGA] 117PPI |
| limistéar gníomhach | 222.72(H)×125.28(V) mm |
| limistéar bezel | - |
| luminance | 1400 cd/m² (Typ.) |
| treo amharc | 12 o'clock |
| uillinn féachana | 80/80/75/80 (Typ.)(CR≥10) |
| dath tacaíochta | 262K/16.7M 47% NTSC |
| meáchan | - |
| ráta fhráma | 60Hz |
| Mionsamhail | TM101DDHG05 |
| cineál | a-Si TFT-LCD , LCM |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | 235(H)×143(V) ×7.8(D) mm |
| cóireáil | Antiglare, Hard coating |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| am freagartha | 7/9 (Typ.)(Tr/Td) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| foinse solais | WLED [14S3P] , 30K hours , W/O Driver |
| deartha le haghaidh | Industrial |
| painéal tadhaill | Without |
