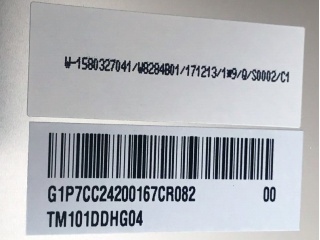

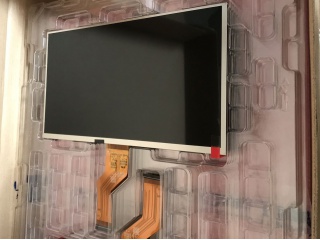

| Uimhir Pháirt | TM101DDHG04 |
| Branda | TIANMA |
| Méid | 10.1 |
| Iarratas | Industrial |
| Rún | 1024×600 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | 10S3P |
| Comhéadan | |
| branda painéil | TIANMA |
| méid an phainéil | 10.1" |
| taifeach | 1024(RGB)×600, WSVGA, 117PPI |
| limistéar taispeána | 222.72(W)×125.28(H) mm |
| méid imlíne | 233.1(W)×137.1(H) ×3.3(D) mm |
| gile | 300 cd/m² (Typ.) |
| uillinn féachana | 80/80/75/80 (Typ.)(CR≥10) |
| radharc is fearr ar | 12 o'clock |
| dathanna a thaispeáint | 262K/16.7M 47% NTSC |
| minicíocht | 60Hz |
| meáchan | 210/220g (Typ./Max.) |
| múnla painéil | TM101DDHG04 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 225.72(W)×128.28(H) mm |
| dromchla | Antiglare, Hard coating (3H) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 7/9 (Typ.)(Tr/Td) |
| cineál lampa | 10S3P WLED , 15K hours , Without Driver |
| scáileán tadhaill | Without |
| iarratas | Industrial |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
