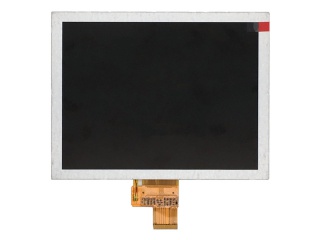

| Uimhir Pháirt | TM080TDHG01-42 |
| Branda | TIANMA |
| Méid | 8.0 |
| Iarratas | Industrial |
| Rún | 1024×768 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 1000:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | 3S9P |
| Comhéadan | |
| monaróir | TIANMA |
| méid scáileáin | 8.0 inch |
| uimhir picteilín | 1024(RGB)×768 (XGA) 160PPI |
| limistéar gníomhach(mm) | 162.048 × 121.536 (H×V) |
| limistéar bezel (mm) | 164.65 × 124.14 (H×V) |
| luminance | 400 (Typ.)(cd/m²) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| radharc maith ag | 12 o'clock |
| doimhneacht dath | 262K/16.7M 50% NTSC |
| mais | 189g |
| ráta athnuachana | 60Hz |
| ainm samhail | TM080TDHG01-42 |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 183 × 141 × 3.7 (H×V×D) |
| cóireáil | Clear |
| cóimheas codarsnachta | 1000 : 1 (Typ.) (TM) |
| modh oibre | TN, Normally White, Transmissive |
| freagra | 20 (Typ.)(Tr+Td) ms |
| cúlsolas | 3S9P WLED , 30K hours , No Driver |
| a úsáidtear le haghaidh | Industrial |
| scáileán tadhaill | Without |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| HSD080IDW1-A00 | HannStar | 8.0 | 800×480 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| LM64C219 | SHARP | 8.0 | 640×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080XCG-L21 | Innolux | 8.0 | 1024×768 |
| P080KDZ-3Z1 | Innolux | 8.0 | 1200×1920 |
| TM080TDHG01 | Tianma | 8.0 | 1024×768 |
