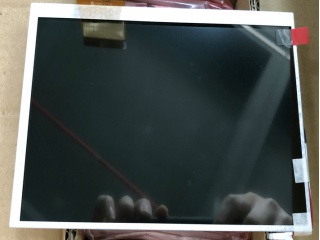

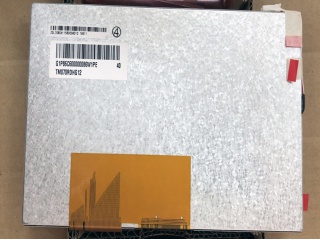

| Uimhir Pháirt | TM070RDHG12 |
| Branda | TIANMA |
| Méid | 7.0 |
| Iarratas | Portable DVD Player |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | Parallel |
| branda | TIANMA |
| Mionsamhail | TM070RDHG12 |
| méid trasnánach | 7.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×480 [WVGA] 134PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 154.08(H)×85.92(V) mm |
| imlíne dim. | 164.9(H)×100(V) ×6(D) mm |
| limistéar bezel | 157.08(H)×89.39(V) mm |
| cóireáil | Antiglare |
| luminance | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| treo amharc | 12 o'clock |
| am freagartha | 20 (Typ.)(Tr+Td) |
| uillinn féachana | 70/70/60/70 (Typ.)(CR≥10) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| dath tacaíochta | 262K/16.7M 50% NTSC |
| foinse solais | WLED [3S7P] , 20K hours , W/O Driver |
| meáchan | 165g (Typ.) |
| deartha le haghaidh | Portable DVD Player Digital Photo Frame |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| soláthar leictreachas | 3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
