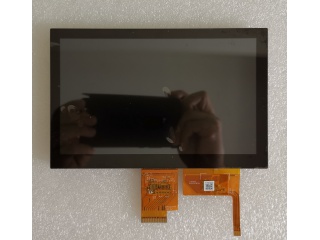

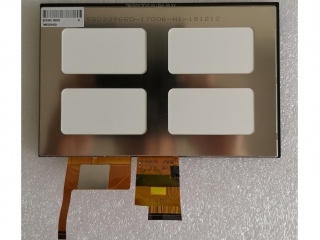

| Uimhir Pháirt | TM070DVHG01-41 |
| Branda | TIANMA |
| Méid | 7.0 |
| Iarratas | Industrial |
| Rún | 1024×600 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 16.7M |
| Cúlsolas | 3S6P |
| Comhéadan | |
| branda painéil | TIANMA |
| méid an phainéil | 7.0" |
| taifeach | 1024(RGB)×600, WSVGA, 169PPI |
| limistéar taispeána | 153.6(W)×90(H) mm |
| méid imlíne | 171.5(W)×110.3(H) ×5.3(D) mm |
| gile | 270 cd/m² (Typ.) |
| uillinn féachana | 75/75/70/75 (Typ.)(CR≥10) |
| radharc is fearr ar | 12 o'clock |
| dathanna a thaispeáint | 16.7M 50% NTSC |
| minicíocht | 60Hz |
| meáchan | - |
| múnla painéil | TM070DVHG01-41 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| dromchla | - |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 20 (Typ.)(Tr+Td) |
| cineál lampa | 3S6P WLED , 20K hours , Without Driver |
| scáileán tadhaill | PCAP |
| iarratas | Industrial |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| DLC0700EZG-2 | Other | 7.0 | 800×480 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| LQ070Y3LG05 | SHARP | 7.0 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
