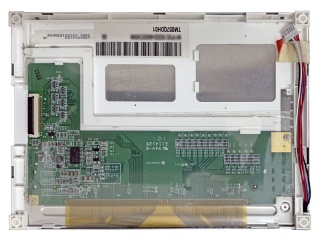

| Uimhir Pháirt | TM057KDH01-41 |
| Branda | TIANMA |
| Méid | 5.7 |
| Iarratas | Industrial |
| Rún | 320×240 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | 5S3P |
| Comhéadan | Parallel |
| branda painéil | TIANMA |
| múnla painéil | TM057KDH01-41 |
| méid an phainéil | 5.7" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 320(RGB)×240, QVGA, 70PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 115.2(W)×86.4(H) mm |
| oscailt bezel | 118.2(W)×89.4(H) mm |
| méid imlíne | 144(W)×104.6(H) ×12.8(D) mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 400 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 70/70/70/60 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 12 o'clock |
| am freagartha | 20 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K 50% NTSC |
| cineál lampa | 5S3P WLED , 50K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 160g (Typ.) |
| iarratas | Industrial |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| ET0570B0DHU | EDT | 5.7 | 640×480 |
| KCS057QV1AJ-G23 | Kyocera | 5.7 | 320×240 |
| KCS057QV1BR-G21 | Kyocera | 5.7 | 320×240 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
