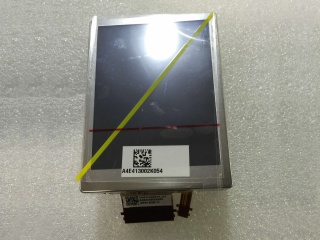

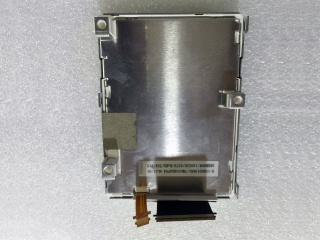

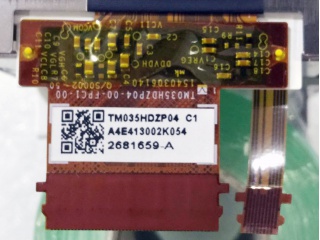

| Uimhir Pháirt | TM035HDZP04 |
| Branda | TIANMA |
| Méid | 3.5 |
| Iarratas | Automotive Display |
| Rún | 240×320 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | |
| branda painéil | TIANMA |
| méid an phainéil | 3.5" |
| taifeach | 240(RGB)×320, QVGA, 114PPI |
| limistéar taispeána | 53.28(W)×71.04(H) mm |
| gile | - |
| uillinn féachana | 88/88/88/88 (Typ.)(CR≥10) |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | 262K |
| minicíocht | 60Hz |
| meáchan | - |
| múnla painéil | TM035HDZP04 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 58.28(W)×74.04(H) mm |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| mód taispeána | SFT, Normally Black, Transmissive |
| am freagartha | 30 (Typ.)(Tr+Td) |
| cineál lampa | WLED , 10K hours , Without Driver |
| scáileán tadhaill | - |
| iarratas | Automotive Display |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03 | Tianma | 3.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM035PDZ15 | Tianma | 3.5 | 320×480 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
