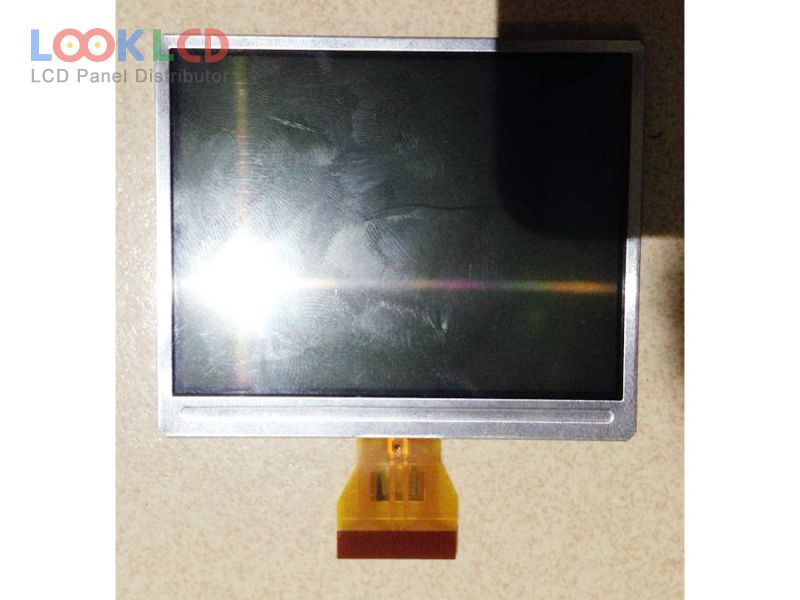

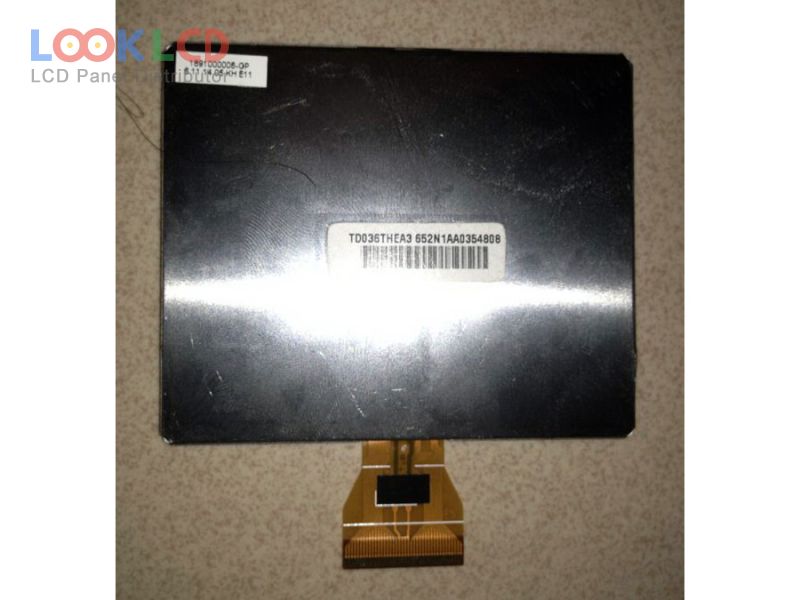

| Uimhir Pháirt | TD036THEA3 |
| Branda | TPO |
| Méid | 3.6 |
| Iarratas | |
| Rún | 320×240 |
| Comhdhéanamh | LCM |
| Gile | 280 |
| CR | 400:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | Serial RGB |
| branda painéil | Toppoly |
| múnla painéil | TD036THEA3 |
| cineál painéil | LTPS TFT-LCD , LCM |
| méid an phainéil | 3.6 inch |
| taifeach | 320(RGB)×240 , QVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 72.96×54.72 mm |
| imlíne | 80.2×66.3 mm |
| dromchla | Hard coating (3H) |
| gile | 280 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (8-bit) |
| am freagartha | 13/22 (Typ.)(Tr/Td) |
| uillinn féachana | 50/20/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| cineál lampa | 3S2PWLED |
| comhéadan comhartha | Serial RGB (8-bit) + SPI, CCIR601, 40 pins |
| voltas ionchuir | 3.0V (Typ.)(VCC) |
| rohs: |
