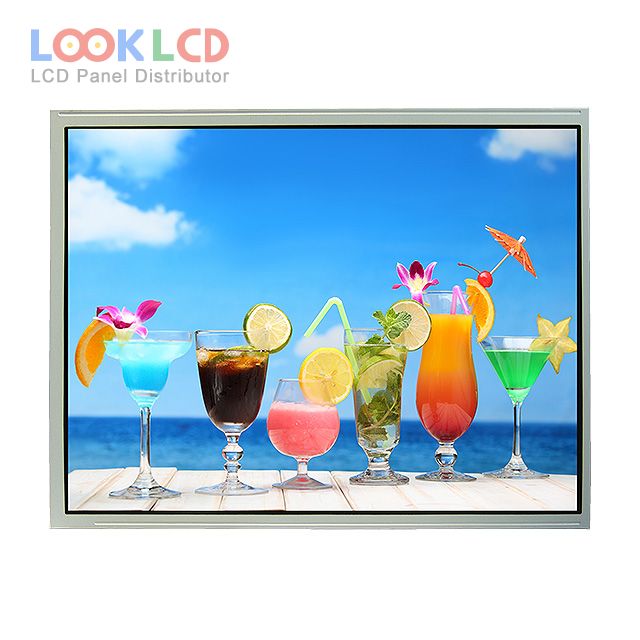

| Uimhir Pháirt | TCG121XGLPAPNN-AN20 |
| Branda | Kyocera |
| Méid | 12.1 |
| Iarratas | IA |
| Rún | 1024×768 |
| Comhdhéanamh | LCM |
| Gile | 400 |
| CR | 750:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | Kyocera |
| múnla painéil | TCG121XGLPAPNN-AN20 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 12.1 inch |
| taifeach | 1024(RGB)×768 , XGA |
| mód taispeána | AWV, Normally Black, Transmissive |
| limistéar gníomhach | 245.76×184.32 mm |
| imlíne | 260.5×203.4×10.8 mm |
| dromchla | Antiglare |
| gile | 400 cd/m² (Typ.) |
| cóimheas codarsnachta | 750:1 (Typ.) |
| dathanna a thaispeáint | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| am freagartha | 18/12 (Typ.)(Tr/Td) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6/8-bit), 20 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | IA |
