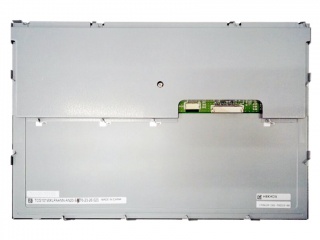

| Uimhir Pháirt | TCG101WXLPAANN-AN20-SA |
| Branda | Kyocera |
| Méid | 10.1 |
| Iarratas | Industrial |
| Rún | 1280×800 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 16.2M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | Kyocera |
| múnla painéil | TCG101WXLPAANN-AN20-SA |
| méid an phainéil | 10.1" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1280(RGB)×800, WXGA, 149PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 216.96(W)×135.6(H) mm |
| oscailt bezel | 219.96(W)×138.6(H) mm |
| méid imlíne | 236(W)×156.8(H) ×9.9(D) mm |
| dromchla | Antiglare |
| gile | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | - |
| am freagartha | 8/22 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 16.2M 52% NTSC |
| cineál lampa | WLED , 50K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 500g (Typ.) |
| iarratas | Industrial |
| comhéadan comhartha | LVDS (1 ch, 8-bit) , 20 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| DLC1010DZG-T-8 | Other | 10.1 | 1280×800 |
| LP101WX1-SLB1 | LG Display | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| M101MWW4 R0 | IVO | 10.1 | 1024×600 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
