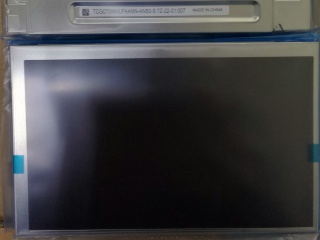

| Uimhir Pháirt | TCG070WVLPAANN-AN50-S |
| Branda | Kyocera |
| Méid | 7.0 |
| Iarratas | Industrial |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 262K |
| Cúlsolas | 2 |
| Comhéadan | Parallel |
| branda painéil | Kyocera |
| méid an phainéil | 7.0" |
| taifeach | 800(RGB)×480, WVGA, 133PPI |
| limistéar taispeána | 152.4(W)×91.44(H) mm |
| méid imlíne | 165(W)×104.4(H) ×8.5(D) mm |
| gile | 900 cd/m² (Typ.) |
| uillinn féachana | 80/80/60/80 (Typ.)(CR≥10) |
| radharc is fearr ar | 12 o'clock |
| dathanna a thaispeáint | 262K 49% NTSC |
| minicíocht | - |
| meáchan painéal | 195g (Typ.) |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| múnla painéil | TCG070WVLPAANN-AN50-S |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 154.4(W)×93.4(H) mm |
| dromchla | Antiglare |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 5/25 (Typ.)(Tr/Td) |
| cineál lampa | 2 strings WLED , 50K hours , Without Driver |
| scáileán tadhaill | Without |
| iarratas | Industrial |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| DLC0700WZG | Other | 7.0 | 1200×1920 |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| TD070WGCB1 | TPO | 7.0 | 854×480 |
