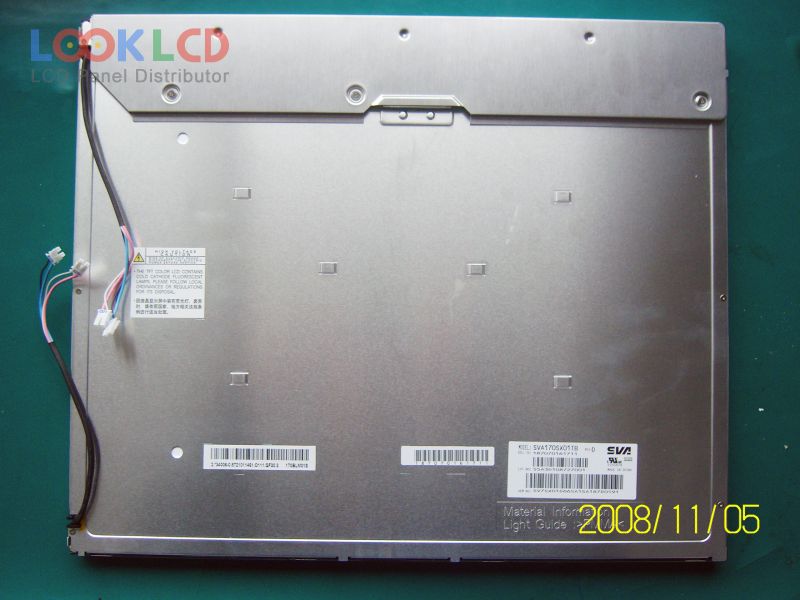

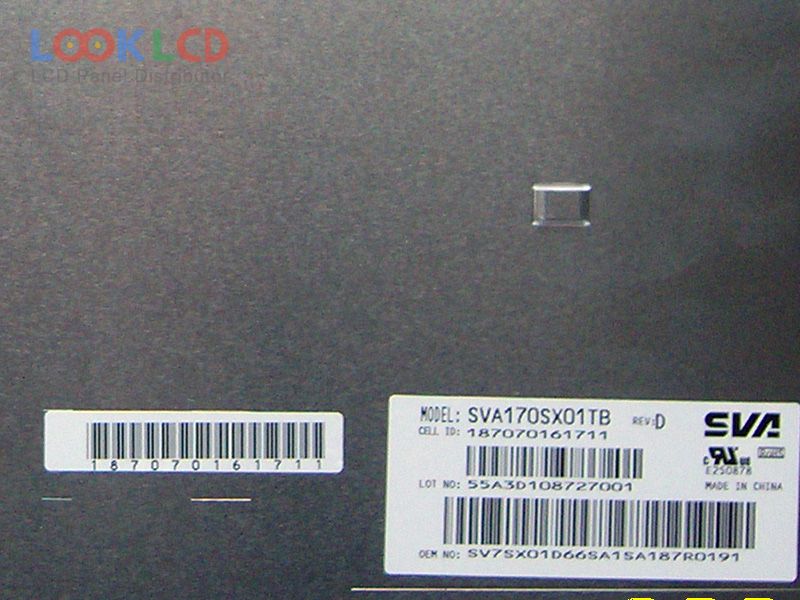

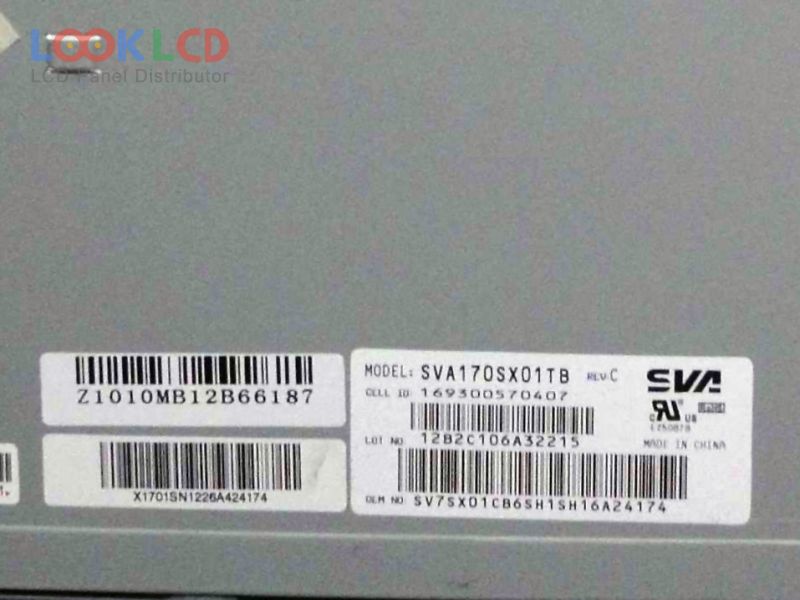

| Uimhir Pháirt | SVA170SX01TB |
| Branda | SVA-NEC |
| Méid | 17.0 |
| Iarratas | DMPC |
| Rún | 1280×1024 |
| Comhdhéanamh | LCM |
| Gile | 300 |
| CR | 600:1 |
| Dathanna | 16.7M |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | SVA-NEC |
| múnla painéil | SVA170SX01TB 1 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 17.0 inch |
| taifeach | 1280(RGB)×1024 , SXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 337.92×270.336 mm |
| imlíne | 358.5×296.5×17.5 mm |
| dromchla | |
| gile | 300 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (6-bit + Hi-FRC), CIE193172% |
| am freagartha | 2/6 (Typ.)(Tr/Td) |
| uillinn féachana | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 4 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (2 ch, 8-bit), 30 pins |
| voltas ionchuir | 5.0V (Typ.) |
| iarratas | DMPC |
