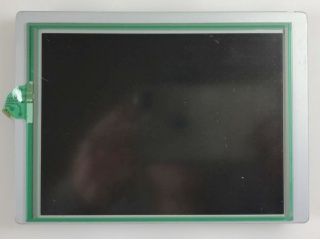

| Uimhir Pháirt | STCG057QVLAD-G00 |
| Branda | Kyocera |
| Méid | 5.7 |
| Iarratas | Industrial |
| Rún | 320×240 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | Parallel |
| monaróir | Kyocera |
| ainm samhail | STCG057QVLAD-G00 |
| méid scáileáin | 5.7 inch |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| uimhir picteilín | 320(RGB)×240 (QVGA) 70PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 115.2 × 86.4 (H×V) |
| imlíne (mm) | - |
| limistéar bezel (mm) | - |
| cóireáil | Glare (Haze 0%) |
| luminance | - |
| cóimheas codarsnachta | 500 : 1 (Typ.) (TM) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥5) |
| freagra | 10/25 (Typ.)(Tr/Td) ms |
| radharc maith ag | - |
| modh oibre | TN, Normally White, Transmissive |
| doimhneacht dath | 262K |
| cúlsolas | WLED |
| mais | - |
| a úsáidtear le haghaidh | Industrial |
| ráta athnuachana | - |
| scáileán tadhaill | 4-wire Resistive Touch |
| cineál comhartha | Parallel RGB (1 ch, 6-bit) |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| DMF-50840NB-FW | Kyocera | 5.7 | 320×240 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| ER0570B2NC6 | EDT | 5.7 | 320×240 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G03 | Kyocera | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| TCG057QVLAC-G00 | Kyocera | 5.7 | 320×240 |
