| Uimhir Pháirt | ST5461B03-5 |
| Branda | CSOT |
| Méid | 55 |
| Iarratas | TV Sets |
| Rún | 1920×1080 |
| Comhdhéanamh | a-Si TFT-LCD , CELL |
| Gile | |
| CR | 4000:1 |
| Dathanna | 16.7M |
| Cúlsolas | No |
| Comhéadan | LVDS |
| branda | CSOT |
| méid trasnánach | 55 inch |
| formáid picteilín | 1920(RGB)×1080 [FHD] 40PPI |
| limistéar gníomhach | 1209.6(H)×680.4(V) mm |
| limistéar bezel | - |
| luminance | 0 cd/m² |
| treo amharc | Symmetry |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| tiús pláta | 0.50+0.50 mm |
| dath tacaíochta | 16.7M 72% NTSC |
| meáchan | 3.50Kgs (Max.) |
| ráta fhráma | 60Hz |
| sonraí d-ic | COF Built-in 6 source + 8 gate chips |
| cineál comhéadan | LVDS (2 ch, 8-bit) , 51 pins Connector |
| soláthar leictreachas | 12.0V (Typ.) |
| timpeallacht | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

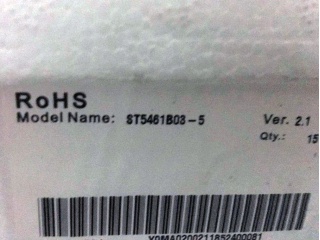

| Mionsamhail | ST5461B03-5 |
| cineál | a-Si TFT-LCD , CELL |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | 1223.6(H)×697.1(V) ×1.35(D) mm |
| cóireáil | Antiglare (Haze 2%), Hard coating (3H) |
| cóimheas codarsnachta | 4000:1 (Typ.) (TM) |
| am freagartha | 7 (Typ.)(G to G) |
| modh oibriúcháin | HVA, Normally Black, Transmissive |
| tarchur | 6.5% (Typ.)(with Polarizer) |
| foinse solais | No B/L |
| deartha le haghaidh | TV Sets |
| painéal tadhaill | Without |
