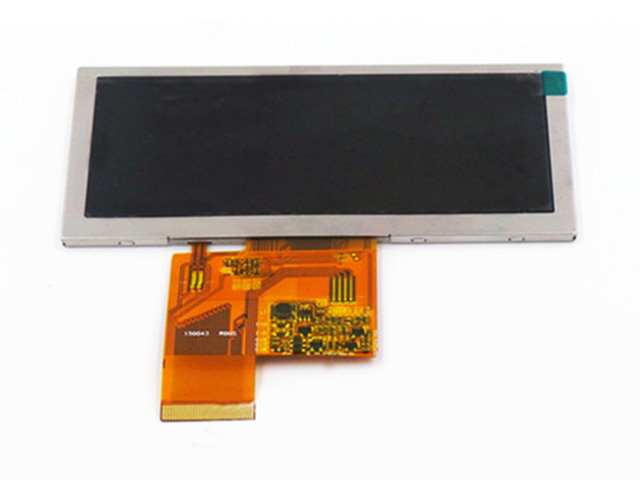

| Uimhir Pháirt | S046WV01 |
| Branda | CDTECH |
| Méid | 4.6 |
| Iarratas | Industrial |
| Rún | 800×320 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 16.7M |
| Cúlsolas | 6S2P |
| Comhéadan | Parallel |
| branda painéil | CDTECH |
| múnla painéil | S046WV01 |
| méid an phainéil | 4.6" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 800(RGB)×320, 188PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 108(W)×43.2(H) mm |
| oscailt bezel | 110.6(W)×46.0(H) mm |
| méid imlíne | 120.7(W)×56.16(H) ×3.3(D) mm |
| dromchla | - |
| gile | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 65/65/55/65 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 12 o'clock |
| am freagartha | 20 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 16.7M 50% NTSC |
| cineál lampa | 6S2P WLED , 25K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | TBD |
| iarratas | Industrial |
| comhéadan comhartha | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltas ionchuir | 3.3V (Typ.)(VDD) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
