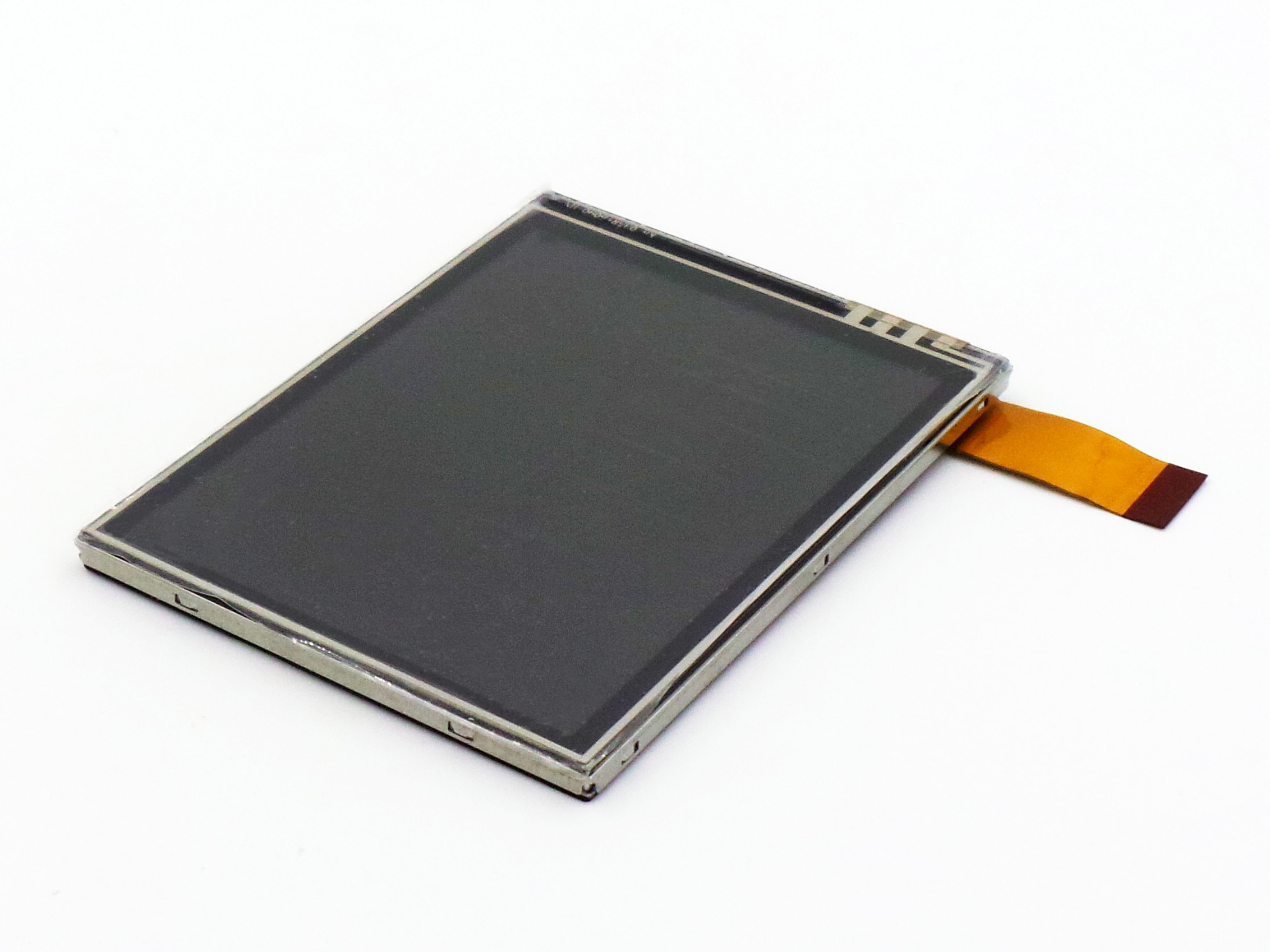

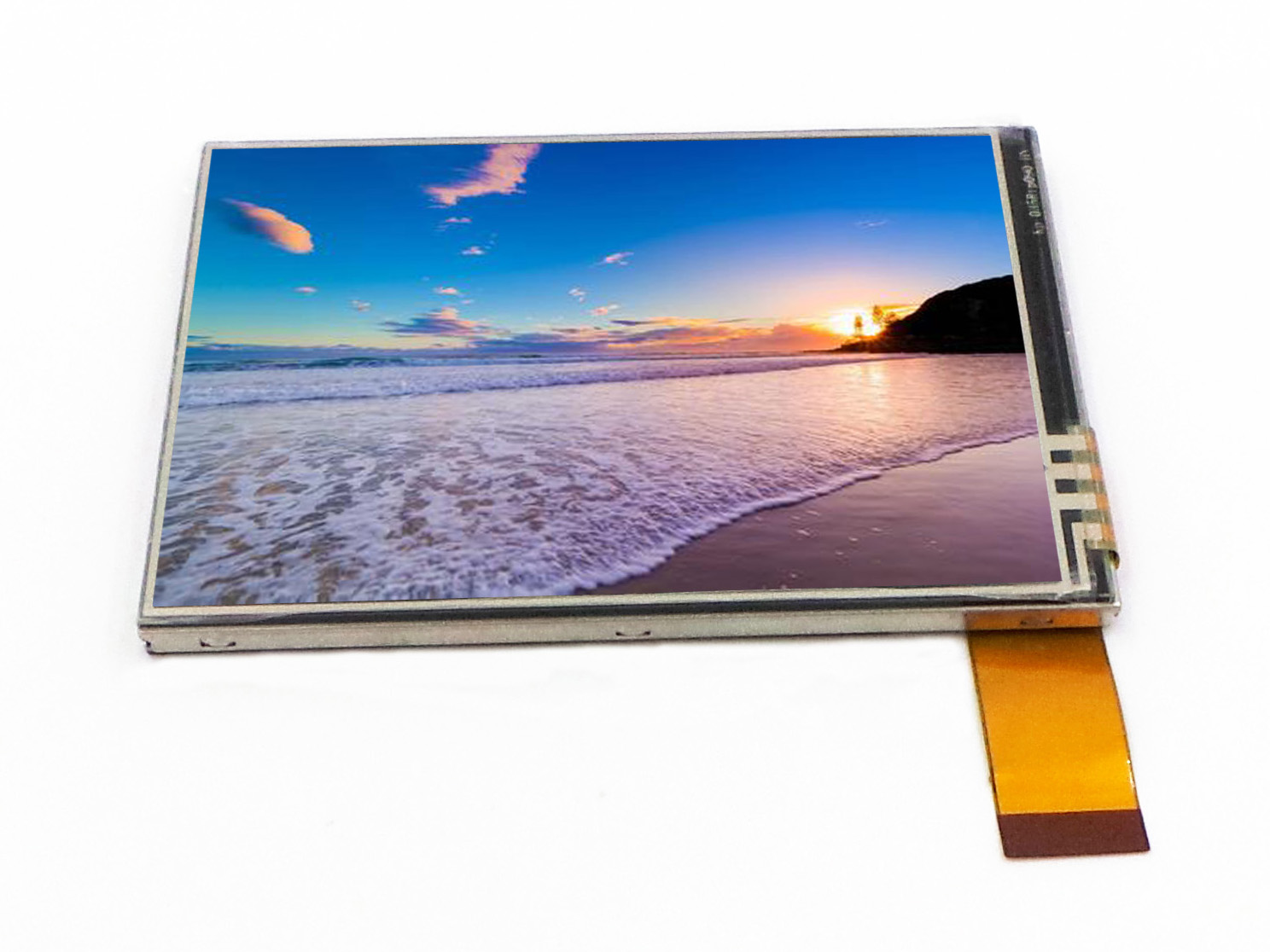

| Uimhir Pháirt | S035V04-T |
| Branda | CDTECH |
| Méid | 3.5 |
| Iarratas | Industrial Handheld |
| Rún | 480×640 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | 8S1P |
| Comhéadan | Parallel |
| branda painéil | CDTECH |
| múnla painéil | S035V04-T |
| méid an phainéil | 3.5" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 480(RGB)×640, VGA, 228PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 53.28(W)×71.04(H) mm |
| oscailt bezel | - |
| méid imlíne | 64(W)×85(H) ×5(D) mm |
| dromchla | - |
| gile | 650 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 65/65/55/65 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 9 o'clock |
| am freagartha | 30 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K 50% NTSC |
| cineál lampa | 8S1P WLED , 25K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | 4-wire Resistive Touch |
| meáchan painéal | TBD |
| iarratas | Industrial Handheld & PDA |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| voltas ionchuir | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| A035VL01 V0 | AUO | 3.5 | 800×480 |
| AM-320480-035BT | Other | 3.5 | 320×480 |
| EL160.80.50 IN | Lumineq | 3.5 | 160×80 |
| ET035009DH6 | EDT | 3.5 | 320×240 |
| LH350H01-FD01-A41 | LG Display | 3.5 | 320×480 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
