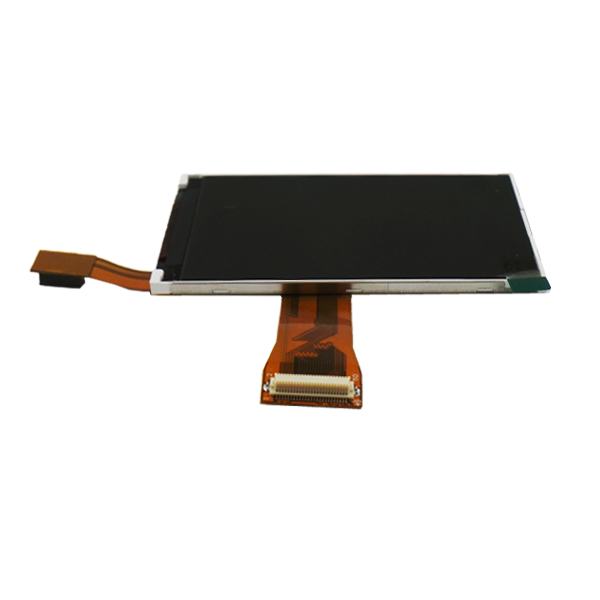

| Uimhir Pháirt | S032Q10 |
| Branda | CDTECH |
| Méid | 3.2 |
| Iarratas | Handheld & PDA |
| Rún | 240×320 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 350:1 |
| Dathanna | 262K |
| Cúlsolas | 1S5P |
| Comhéadan | CPU |
| branda painéil | CDTECH |
| múnla painéil | S032Q10 |
| méid an phainéil | 3.2" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 240(RGB)×320, QVGA, 127PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 47.88(W)×63.84(H) mm |
| oscailt bezel | - |
| méid imlíne | 55.04(W)×77.7(H) ×2.5(D) mm |
| dromchla | - |
| gile | 270 cd/m² (Typ.) |
| cóimheas codarsnachta | 350:1 (Typ.) (TM) |
| uillinn féachana | 55/65/65/65 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 9 o'clock |
| am freagartha | 20 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K |
| cineál lampa | 1S5P WLED , 25K hours , Without Driver |
| minicíocht | - |
| scáileán tadhaill | Without |
| meáchan painéal | TBD |
| iarratas | Handheld & PDA |
| comhéadan comhartha | CPU , 37 pins FPC |
| voltas ionchuir | 3.3/3.3V (Max.)(VCC/IOVCC) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
