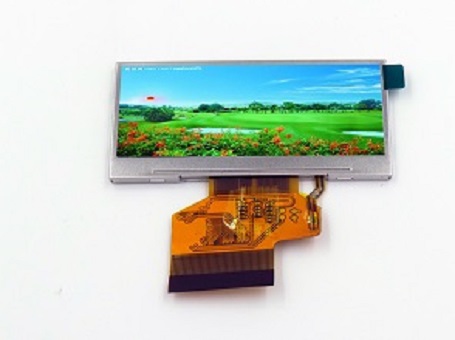

| Uimhir Pháirt | S029Q03 |
| Branda | CDTECH |
| Méid | 2.9 |
| Iarratas | Stretched Bar LCD |
| Rún | 320×120 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | 8/9/16/18-bit |
| branda | CDTECH |
| Mionsamhail | S029Q03 |
| méid trasnánach | 2.9 inch (1/2 cut of 3.5") |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 320(RGB)×120 115PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 70.08(H)×26.284(V) mm |
| imlíne dim. | 76.9(H)×37.72(V) ×3.46(D) mm |
| limistéar bezel | 72.68(H)×28.88(V) mm |
| cóireáil | - |
| luminance | 300 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) (TM) |
| treo amharc | 12 o'clock |
| am freagartha | 8/17 (Typ.)(Tr/Td) |
| uillinn féachana | 65/65/55/65 (Typ.)(CR≥10) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| dath tacaíochta | 262K 61% NTSC |
| foinse solais | WLED [6S1P] , 30K hours , W/O Driver |
| meáchan | TBD |
| deartha le haghaidh | Stretched Bar LCD |
| ráta fhráma | - |
| painéal tadhaill | Without |
| cineál comhéadan | 8/9/16/18-bit 6800/8080 parallel, 6/9/16/18-bit RGB, SPI , 54 pins FPC |
| soláthar leictreachas | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
