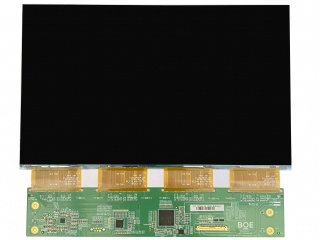

| Uimhir Pháirt | RV101FBB-N00 |
| Branda | BOE |
| Méid | 10.1 |
| Iarratas | 3D Printer |
| Rún | 4920×2880 |
| Comhdhéanamh | a-Si TFT-LCD, CELL |
| Gile | |
| CR | 400:1 |
| Dathanna | Monochrome |
| Cúlsolas | No |
| Comhéadan | eDP |
| branda painéil | BOE |
| múnla painéil | RV101FBB-N00 |
| méid an phainéil | 10.1" |
| cineál painéil | a-Si TFT-LCD, CELL |
| taifeach | 4920×2880, 564PPI |
| formáid picteilín | Rectangle |
| limistéar taispeána | 221.4(W)×129.6(H) mm |
| oscailt bezel | - |
| méid imlíne | 227.43(W)×139.5(H) ×0.95(D) mm |
| dromchla | Antiglare (Haze 25%), Hard coating (3H) |
| gile | 0 cd/m² |
| cóimheas codarsnachta | 400:1 (Min.) (TM) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| mód taispeána | ADS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 35 (Max.)(Tr+Td) |
| doimhneacht gloine | - |
| transmissivity | 6.0% (Typ.) |
| dathanna a thaispeáint | Monochrome |
| cineál lampa | No B/L |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| Tiománaí ic | COGBuilt-in 4 source chips |
| meáchan painéal | TBD |
| iarratas | 3D Printer |
| comhéadan comhartha | eDP (4 Lanes) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -10 ~ 80 °C |
