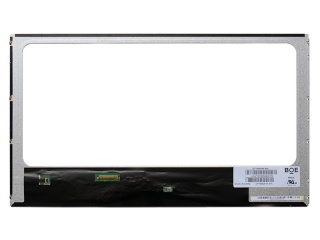

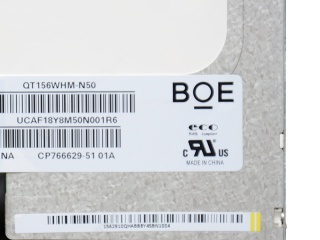

| Uimhir Pháirt | QT156WHM-N50 |
| Branda | BOE |
| Méid | 15.6 |
| Iarratas | Laptop Printer Home |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | BOE |
| méid an phainéil | 15.6" |
| taifeach | 1366(RGB)×768, WXGA, 100PPI |
| limistéar taispeána | 344.232(W)×193.536(H) mm |
| gile | 200 cd/m² (Typ.) |
| uillinn féachana | 45/45/20/40 (Typ.)(CR≥10) |
| radharc is fearr ar | 6 o'clock |
| dathanna a thaispeáint | 262K 45% NTSC |
| minicíocht | 60Hz |
| stíl cruth | Wedge (PCBA Bent, T≥5.2mm) |
| comhéadan comhartha | LVDS (1 ch, 6-bit) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| múnla painéil | QT156WHM-N50 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 12 (Typ.)(Tr+Td) |
| cineál lampa | WLED , 15K hours , With LED Driver |
| scáileán tadhaill | Without |
| iarratas | Laptop Printer Home Appliance |
