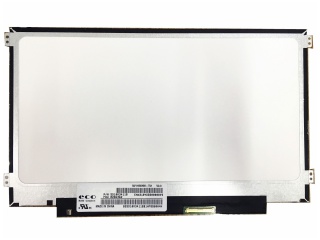

| Uimhir Pháirt | NV116WHM-T01 |
| Branda | BOE |
| Méid | 11.6 |
| Iarratas | Laptop |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K |
| Cúlsolas | 8S3P |
| Comhéadan | eDP |
| branda painéil | BOE |
| múnla painéil | NV116WHM-T01 (BOE0786) |
| méid an phainéil | 11.6" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1366(RGB)×768, WXGA, 135PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 256.125(W)×144(H) mm |
| oscailt bezel | - |
| méid imlíne | 278(W)×168.5(H) ×3.2(D) mm |
| dromchla | Hard coating |
| gile | 250 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | ADS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 30 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K 51% NTSC |
| cineál lampa | 8S3P WLED , 15K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | On-Cell Touch |
| stíl cruth | Slim (PCBA Flat, T≤3.2mm) |
| iarratas | Laptop |
| comhéadan comhartha | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| LP116WF1-SPA1 | LG Display | 11.6 | 1920×1080 |
| LP116WH4-SLN2 | LG Display | 11.6 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| N116HSE-EBC | Innolux | 11.6 | 1920×1080 |
| NT116WHM-N31 | BOE | 11.6 | 1366×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
