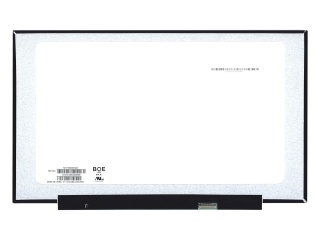

| Uimhir Pháirt | NT173WDM-N25 |
| Branda | BOE |
| Méid | 17.3 |
| Iarratas | Laptop |
| Rún | 1600×900 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | 10S5P |
| Comhéadan | eDP |
| branda painéil | BOE |
| múnla painéil | NT173WDM-N25 (BOE0954) |
| méid an phainéil | 17.3" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1600(RGB)×900, HD+, 106PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 382.08(W)×214.92(H) mm |
| oscailt bezel | - |
| méid imlíne | 389.88(W)×236.52(H) ×3.5(D) mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 250 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 45/45/20/40 (Min.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 6 o'clock |
| am freagartha | 12 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K 60% NTSC |
| cineál lampa | 10S5P WLED , 15K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| stíl cruth | Flat (PCBA Flat, T3.4~4.0mm) |
| iarratas | Laptop |
| comhéadan comhartha | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| B173RW01 V2 HW7A | AUO | 17.3 | 1600×900 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTN173KT01-J01 | Samsung | 17.3 | 1600×900 |
| N173FGE-E23 | Innolux | 17.3 | 1600×900 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
