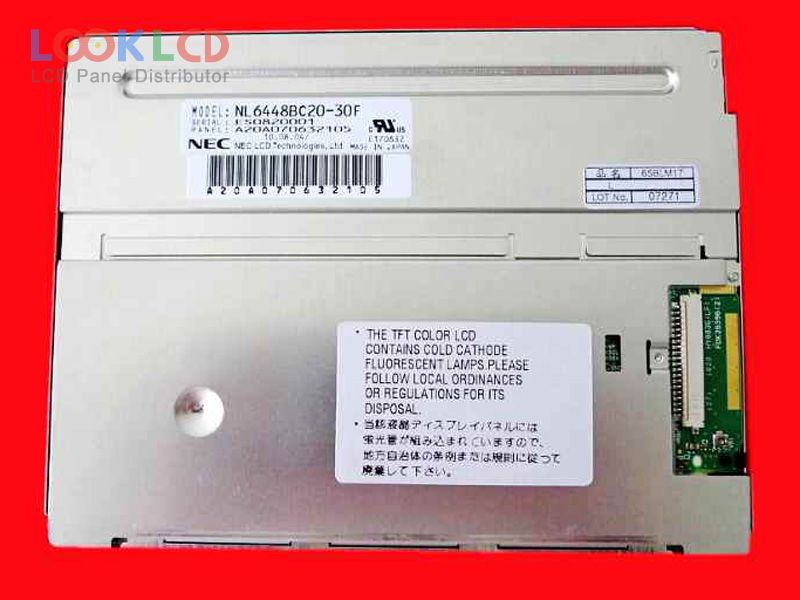

| Uimhir Pháirt | NL6448BC20-30F |
| Branda | NLT |
| Méid | 6.5 |
| Iarratas | IA |
| Rún | 640×480 |
| Comhdhéanamh | LCM |
| Gile | 1000 |
| CR | 800:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | NEC |
| múnla painéil | NL6448BC20-30F |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 6.5 inch |
| taifeach | 640(RGB)×480 , VGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 132.48×99.36 mm |
| imlíne | 153×118 mm |
| dromchla | Clear, Hard coating (3H) |
| gile | 1000 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) |
| dathanna a thaispeáint | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| am freagartha | 3/15 (Typ.)(Tr/Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 4 stringsWLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6/8-bit), 20 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | IA |
