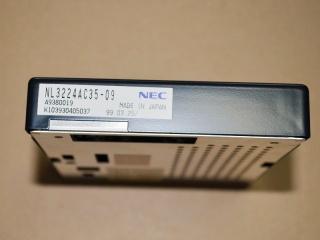

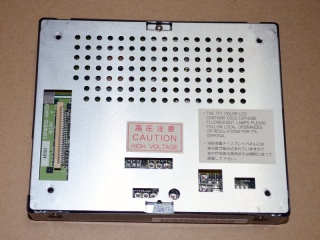

| Uimhir Pháirt | NL3224AC35-09 |
| Branda | NEC |
| Méid | 5.5 |
| Iarratas | Industrial |
| Rún | 320×240 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | - |
| Comhéadan | |
| branda painéil | NEC |
| méid an phainéil | 5.5" |
| taifeach | 320(RGB)×240, QVGA, 72PPI |
| limistéar taispeána | 111.36(W)×83.52(H) mm |
| gile | - |
| uillinn féachana | - |
| radharc is fearr ar | - |
| dathanna a thaispeáint | 262K |
| minicíocht | 60Hz |
| meáchan | - |
| múnla painéil | NL3224AC35-09 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| cóimheas codarsnachta | 400:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 5/25 (Typ.)(Tr/Td) |
| cineál lampa | |
| scáileán tadhaill | Without |
| iarratas | Industrial |
