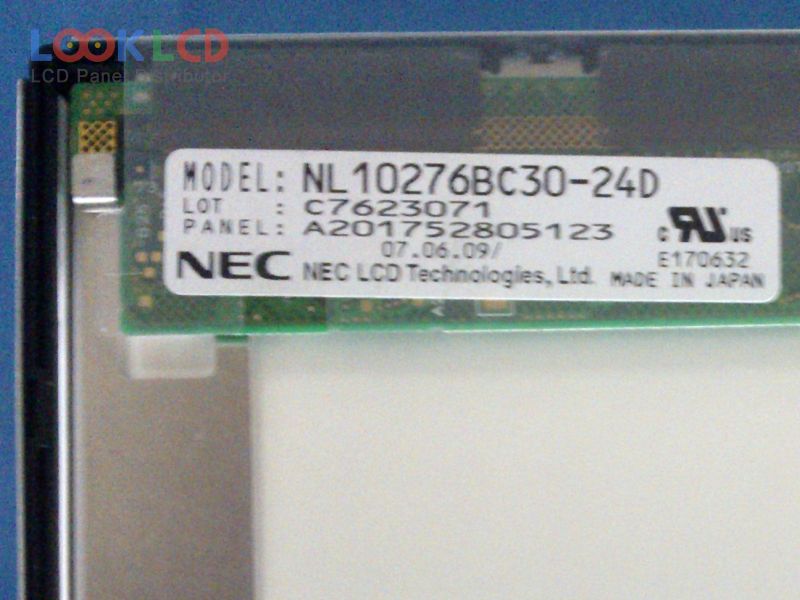

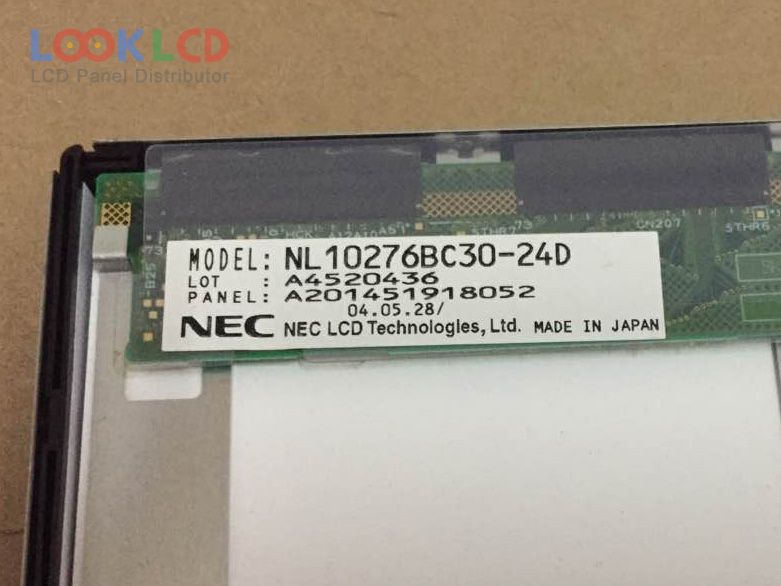

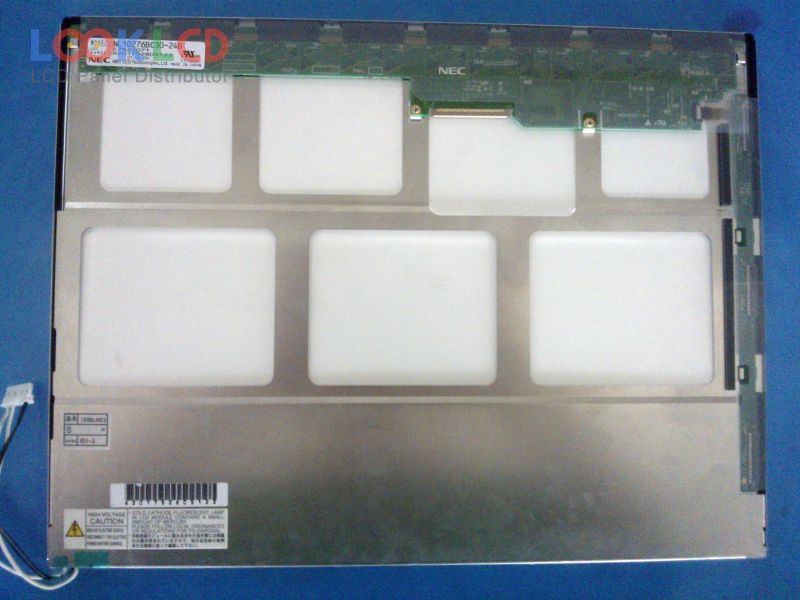

| Uimhir Pháirt | NL10276BC30-24D |
| Branda | NLT |
| Méid | 15.0 |
| Iarratas | NBPC |
| Rún | 1024×768 |
| Comhdhéanamh | LCM |
| Gile | 320 |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | NEC |
| múnla painéil | NL10276BC30-24D |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 15.0 inch |
| taifeach | 1024(RGB)×768 , XGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 304.128×228.096 mm |
| imlíne | 317.3×242.2×10 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Clear, Hard coating (2H), Antireflection |
| gile | 320 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193172% |
| am freagartha | TBD |
| uillinn féachana | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 2 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 30 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
