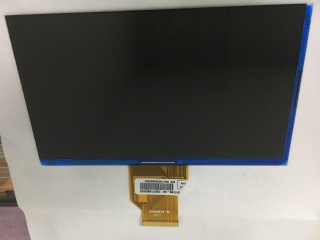

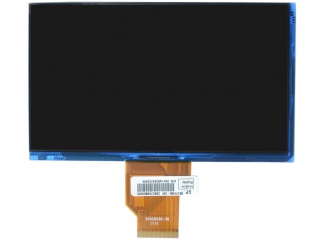

| Uimhir Pháirt | NE070NB-04F |
| Branda | Chimei Innolux |
| Méid | 7.0 |
| Iarratas | Digital Photo Frame |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, CELL |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | No |
| Comhéadan | Parallel |
| branda | Chimei Innolux |
| Mionsamhail | NE070NB-04F |
| méid trasnánach | 7.0 inch |
| cineál | a-Si TFT-LCD, CELL |
| formáid picteilín | 800(RGB)×480 [WVGA] 134PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 154.08(H)×85.92(V) mm |
| imlíne dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| limistéar bezel | - |
| cóireáil | Antiglare |
| luminance | 0 cd/m² |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| treo amharc | 6 o'clock |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 70/70/50/70 (Typ.)(CR≥10) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| tiús pláta | 0.50+0.50 mm |
| tarchur | 4.86% (Typ.)(with Polarizer) |
| dath tacaíochta | 262K/16.7M |
| foinse solais | No B/L |
| meáchan | 45.0g (Typ.) |
| deartha le haghaidh | Digital Photo Frame Portable DVD Player |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| sonraí d-ic | COG Built-in 1 source + 1 gate chips |
| cineál comhéadan | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| soláthar leictreachas | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
