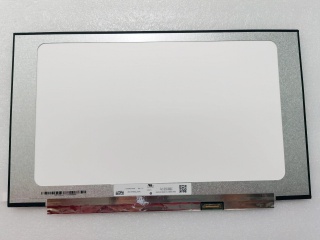

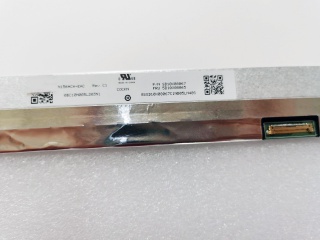

| Uimhir Pháirt | N156HCA-EAC |
| Branda | Innolux |
| Méid | 15.6 |
| Iarratas | Laptop |
| Rún | 1920×1080 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| branda painéil | Innolux |
| múnla painéil | N156HCA-EAC (CMN151E) |
| méid an phainéil | 15.6" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1920(RGB)×1080, FHD, 141PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 344.16(W)×193.59(H) mm |
| oscailt bezel | - |
| méid imlíne | 350.66(W)×214.75(H) ×3.2(D) mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 300 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| mód taispeána | AAS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 11/9 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 16.7M 45% NTSC |
| cineál lampa | WLED , 15K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| stíl cruth | Slim (PCBA Flat, T≤3.2mm) |
| iarratas | Laptop |
| comhéadan comhartha | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT05-601 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
