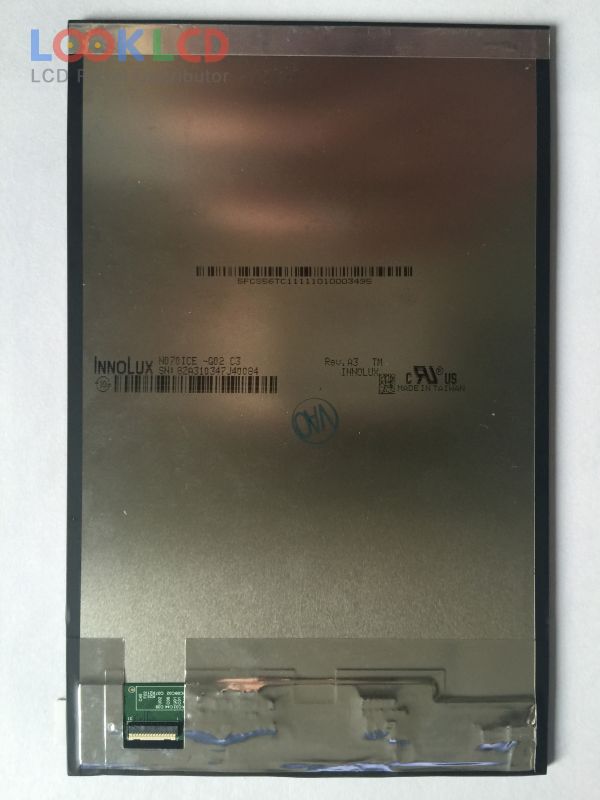

N070ICE-G02 Rev.C3

N070ICE-G02 Rev.C3
N070ICE-G02 Rev.C3 thumb
Branda
Innolux
Méid
7.0
Iarratas
PAD
Rún
800×1280
Comhdhéanamh
LCM
Gile
300
CR
800:1
Dathanna
16.7M
Cúlsolas
WLED
Comhéadan
MIPI
In Stock
700
Sonraíochtaí

Uimhir Pháirt N070ICE-G02 Rev.C3
BrandaInnolux
Méid7.0
IarratasPAD
Rún800×1280
ComhdhéanamhLCM
Gile300
CR800:1
Dathanna16.7M
CúlsolasWLED
ComhéadanMIPI
branda painéilINNOLUX
múnla painéilN070ICE-G02 Rev.C3
cineál painéil a-Si TFT-LCD , LCM
méid an phainéil7.0 inch
taifeach800(RGB)×1280 , WXGA
mód taispeánaAAS, Normally Black, Transmissive
limistéar gníomhach94.2×150.72 mm
imlíne103.5×162.22×4.51 mm
dromchlaGlare (Haze 0%), Hard coating (3H)
gile300 cd/m² (Typ.)
cóimheas codarsnachta800:1 (Typ.)
dathanna a thaispeáint16.7M (8-bit), CIE193160%
am freagartha11/9 (Typ.)(Tr/Td)
uillinn féachana89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
minicíocht60Hz
cineál lampa3S6PWLEDWithout Driver
comhéadan comharthaMIPI (4 data lanes), 31 pins
voltas ionchuir1.8/3.3V (Typ.)(VDDI/VCI)
iarratasPAD
