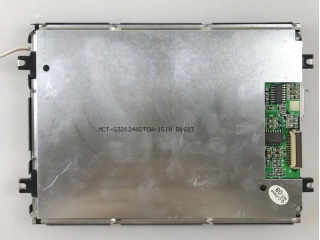

| Uimhir Pháirt | MCT-G320240DTCW-151N |
| Branda | TRULY |
| Méid | 5.7 |
| Iarratas | Industrial |
| Rún | 320×240 |
| Comhdhéanamh | CSTN-LCD , LCM |
| Gile | |
| CR | 45:1 |
| Dathanna | Color |
| Cúlsolas | CCFL |
| Comhéadan | Parallel |
| branda | TRULY |
| méid trasnánach | 5.7 inch |
| formáid picteilín | 320(RGB)×240 [QVGA] 70PPI |
| limistéar gníomhach | 115.18(H)×86.38(V) mm |
| limistéar bezel | 119.18(H)×90.38(V) mm |
| luminance | 220 cd/m² (Typ.) |
| treo amharc | - |
| uillinn féachana | 50/50/55/40 (Typ.)(CR≥10) |
| dath tacaíochta | Color |
| meáchan | - |
| ráta fhráma | - |
| cineál comhéadan | Parallel Data (1ch, 8-bit) , 16 pins Connector |
| timpeallacht | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -10 ~ 60 °C |
| Mionsamhail | MCT-G320240DTCW-151N |
| cineál | CSTN-LCD , LCM |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | 158.5(H)×109(V) ×9.2(D) mm |
| cóireáil | - |
| cóimheas codarsnachta | 45:1 (Typ.) (TM) |
| am freagartha | 215/110 (Typ.)(Tr/Td) |
| modh oibriúcháin | STN, Normally Black, Transmissive |
| foinse solais | CCFL [1 pcs] , 15K hours , W/O Driver |
| deartha le haghaidh | Industrial |
| painéal tadhaill | Without |
