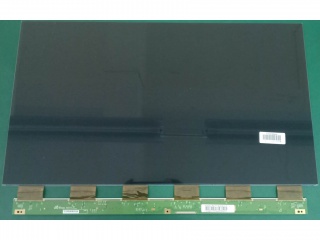

| Uimhir Pháirt | M236HJJ-P02 Rev.C3 |
| Branda | Innolux |
| Méid | 23.6 |
| Iarratas | Desktop Monitor |
| Rún | 1920×1080 |
| Comhdhéanamh | a-Si TFT-LCD , CELL |
| Gile | |
| CR | 3000:1 |
| Dathanna | 16.7M |
| Cúlsolas | No |
| Comhéadan | LVDS |
| branda painéil | Innolux |
| méid an phainéil | 23.6" |
| taifeach | 1920(RGB)×1080, FHD, 93PPI |
| limistéar taispeána | 521.28(W)×293.22(H) mm |
| méid imlíne | 534.28(W)×306.252(H) mm |
| gile | 0 cd/m² |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| radharc is fearr ar | Symmetry |
| doimhneacht gloine | - |
| dathanna a thaispeáint | 16.7M 72% NTSC |
| minicíocht | 60Hz |
| Tiománaí ic | COF Built-in 6 source chips |
| meáchan painéal | 512/530g (Typ./Max.) |
| comhéadan comhartha | LVDS (2 ch, 8-bit) , 30 pins Connector |
| voltas ionchuir | 5.0V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| múnla painéil | M236HJJ-P02 Rev.C3 |
| cineál painéil | a-Si TFT-LCD , CELL |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| dromchla | Antiglare (Haze 25%), Hard coating (3H) |
| cóimheas codarsnachta | 3000:1 (Typ.) (TM) |
| mód taispeána | Super MVA, Normally Black, Transmissive |
| am freagartha | 25 (Typ.)(G to G) |
| transmissivity | 4.6% (Typ.)(with Polarizer) |
| cineál lampa | No B/L |
| scáileán tadhaill | Without |
| iarratas | Desktop Monitor |
