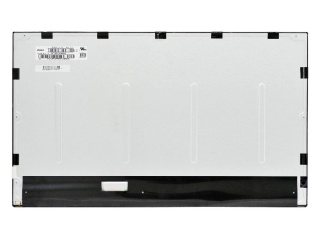

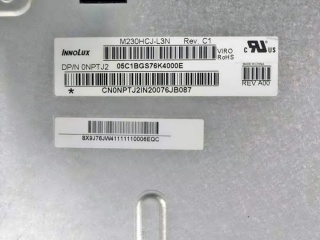

| Uimhir Pháirt | M230HCJ-L3N Rev.C1 |
| Branda | Innolux |
| Méid | 23.0 |
| Iarratas | Desktop Monitor |
| Rún | 1920×1080 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | 4 |
| Comhéadan | LVDS |
| branda painéil | Innolux |
| múnla painéil | M230HCJ-L3N Rev.C1 |
| méid an phainéil | 23.0" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1920(RGB)×1080, FHD, 95PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 509.184(W)×286.416(H) mm |
| oscailt bezel | 512.38(W)×289.62(H) mm |
| méid imlíne | 522.38(W)×305.62(H) mm |
| dromchla | Antiglare (Haze 25%), Hard coating (3H) |
| gile | 250 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| mód taispeána | AAS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 8/7 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 16.7M 72% NTSC |
| cineál lampa | 4 strings WLED , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 1.96/2.06/2.23Kgs (Min./Typ./Max.) |
| iarratas | Desktop Monitor |
| comhéadan comhartha | LVDS (2 ch, 8-bit) , 30 pins Connector |
| voltas ionchuir | 5.0V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LC230EUE-SEA1 | LG Display | 23.0 | 1920×1080 |
| LC230WX3-SLA1 | LG Display | 23.0 | 1366×768 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD2 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD5 | LG Display | 23.0 | 1920×1080 |
| LTA230A172F | TOSHIBA | 23.0 | 1280×768 |
| LTM230HT01 | Samsung | 23.0 | 1920×1080 |
| LTM230HU01 | Samsung | 23.0 | 1920×1080 |
| M230HGE-L20 | Innolux | 23.0 | 1920×1080 |
| T230XW01 V2 | AUO | 23.0 | 1366×768 |
