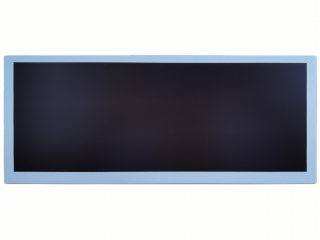

| Uimhir Pháirt | M102AWF2 R2 |
| Branda | IVO |
| Méid | 10.3 |
| Iarratas | Automotive Display |
| Rún | 1920×720 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | 8S3P |
| Comhéadan | LVDS |
| branda painéil | IVO |
| múnla painéil | M102AWF2 R2 |
| méid an phainéil | 10.3" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1920(RGB)×720, 200PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 243.65(W)×91.37(H) mm |
| oscailt bezel | 245.65(W)×93.66(H) mm |
| méid imlíne | 262.04(W)×110.3(H) ×16(D) mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 800 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | IPS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 20 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 16.7M 75% NTSC |
| cineál lampa | 8S3P WLED , 10K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 380g (Max.) |
| iarratas | Automotive Display |
| comhéadan comhartha | LVDS (2 ch, 8-bit) , 50 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
