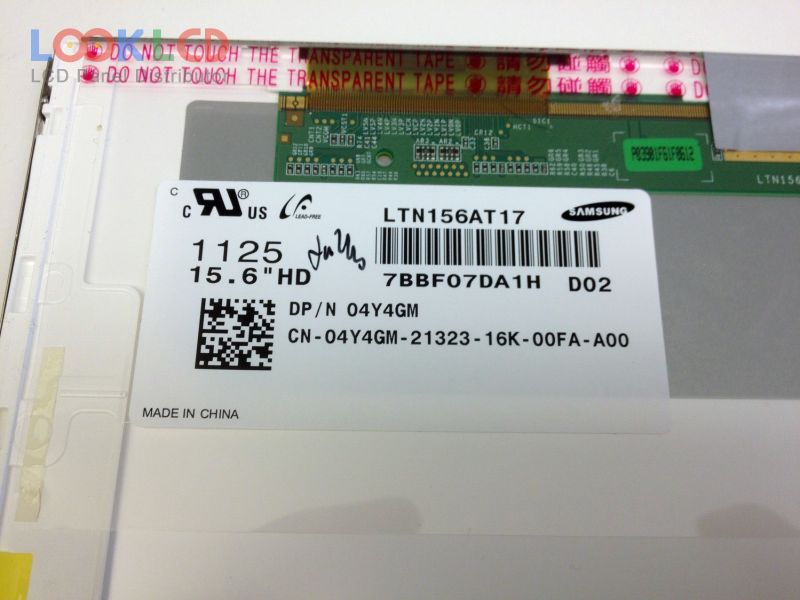

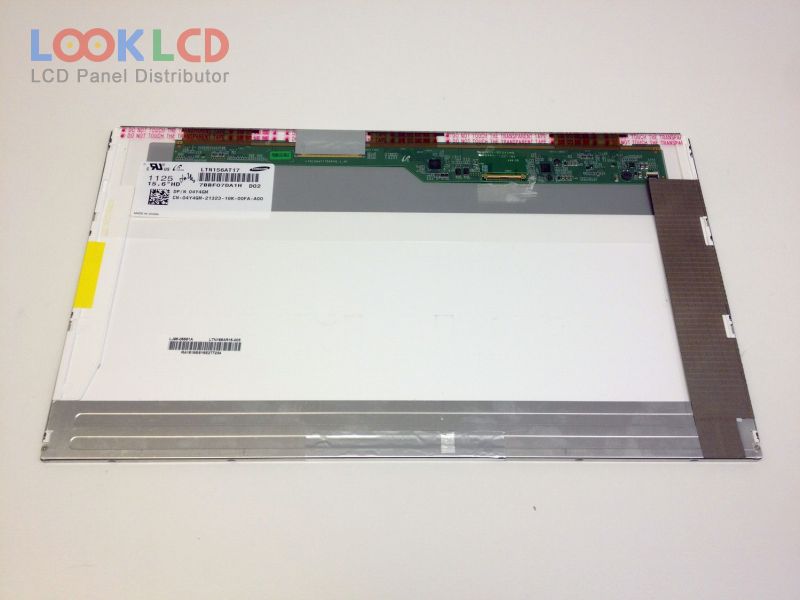

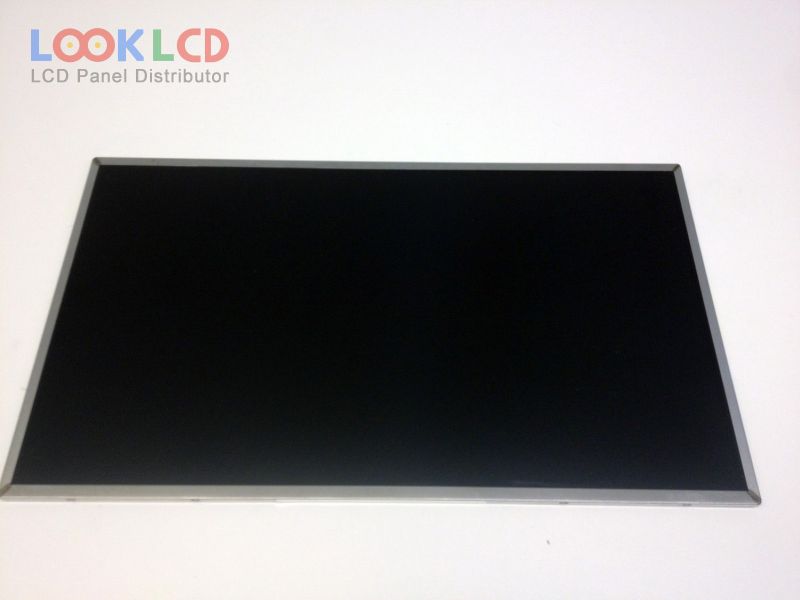

| Uimhir Pháirt | LTN156AT17-D02 |
| Branda | Samsung |
| Méid | 15.6 |
| Iarratas | NBPC |
| Rún | 1366×768 |
| Comhdhéanamh | LCM |
| Gile | 220 |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | SAMSUNG |
| múnla painéil | LTN156AT17-D02 16 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 15.6 inch |
| taifeach | 1366(RGB)×768 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 344.232×193.536 mm |
| imlíne | 359.3×209.5×5.5 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Glare (Haze 0%), Hard coating (3H) |
| gile | 220 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Min.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193160% |
| am freagartha | 16 (Typ.)(Tr+Td) |
| uillinn féachana | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 9S4PWLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-A04 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-701 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT16-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN156AT19-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| B133XW01 V2 | AUO | 13.3 | 1366×768 |
| B141EW04 V5 | AUO | 14.1 | 1280×800 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP140WH1-TLC6 | LG Display | 14.0 | 1366×768 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LTN141BT06-002 | Samsung | 14.1 | 1440×900 |
| N140FGE-LA2 | Innolux | 14.0 | 1600×900 |
| NT156WHM-N12 | BOE | 15.6 | 1366×768 |
| TM133XG-02L07A | SANYO | 13.3 | 1024×768 |
