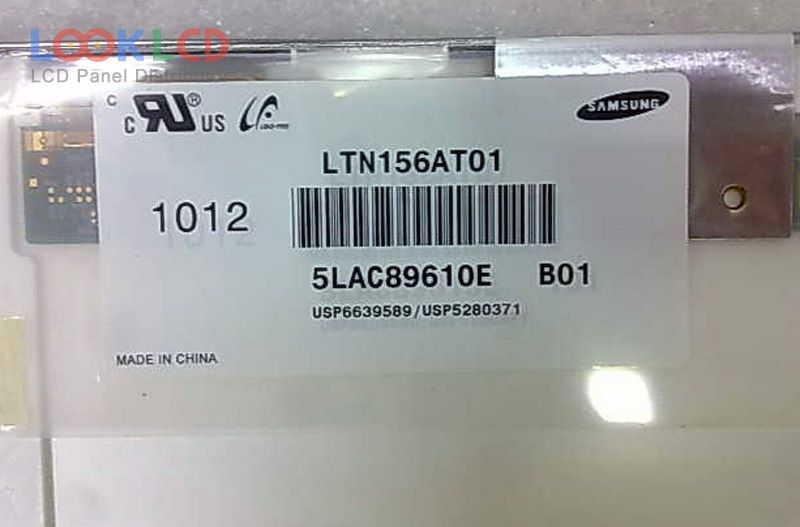

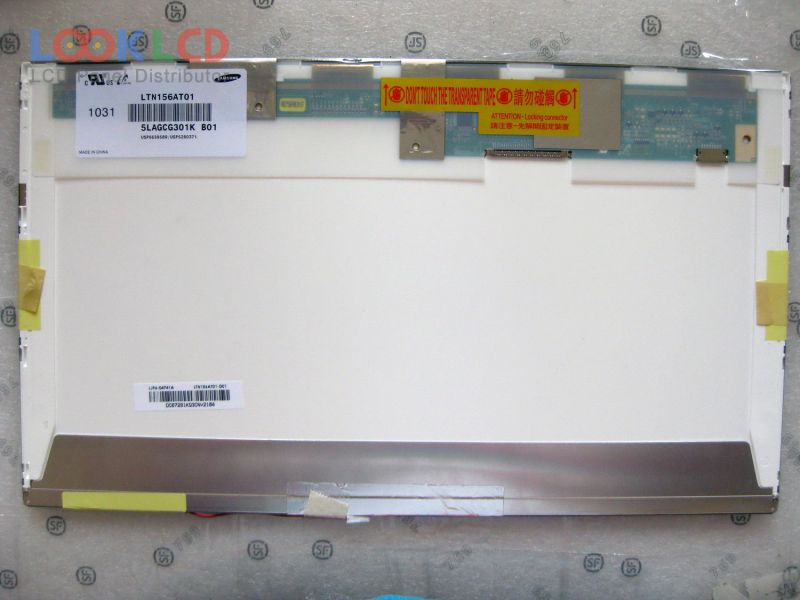

| Uimhir Pháirt | LTN156AT01-B01 |
| Branda | Samsung |
| Méid | 15.6 |
| Iarratas | NBPC |
| Rún | 1366×768 |
| Comhdhéanamh | LCM |
| Gile | 220 |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | SAMSUNG |
| múnla painéil | LTN156AT01-B01 10 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 15.6 inch |
| taifeach | 1366(RGB)×768 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 344.232×193.536 mm |
| imlíne | 359.3×209.5×6.2 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Glare (Haze 0%), Hard coating (3H) |
| gile | 220 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193160% |
| am freagartha | 25/35 (Typ./Max.)(Tr+Td) |
| uillinn féachana | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 1 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 30 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
| LTN156AT01-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| B154SW01 V0 | AUO | 15.4 | 1680×1050 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LP133WF2-SPA1 | LG Display | 13.3 | 1920×1080 |
| LP140WH2-TLL1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLC1 | LG Display | 14.0 | 1366×768 |
| LTM15C460F | TOSHIBA | 15.0 | 1024×768 |
| LTN140AT01-G01 | Samsung | 14.0 | 1366×768 |
| LTN140AT28-W01 | Samsung | 14.0 | 1366×768 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N133I6-L09 | Innolux | 13.3 | 1280×800 |
