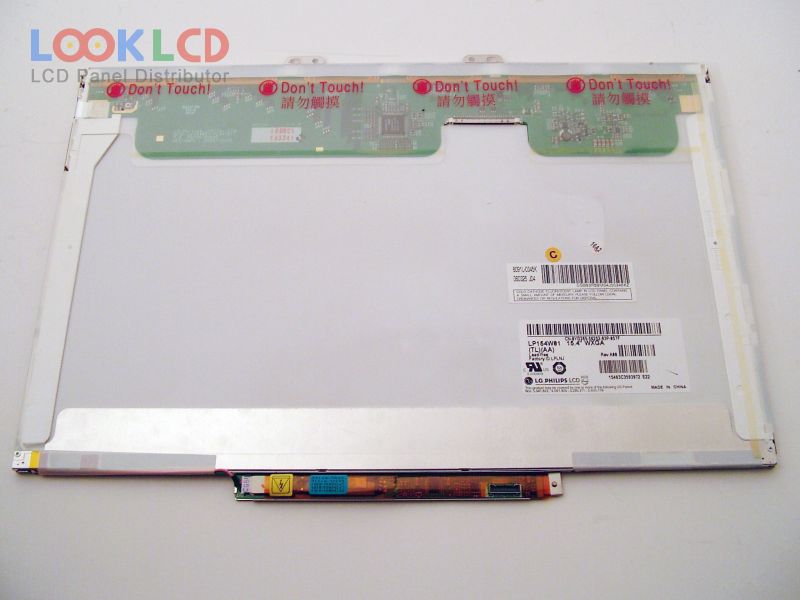

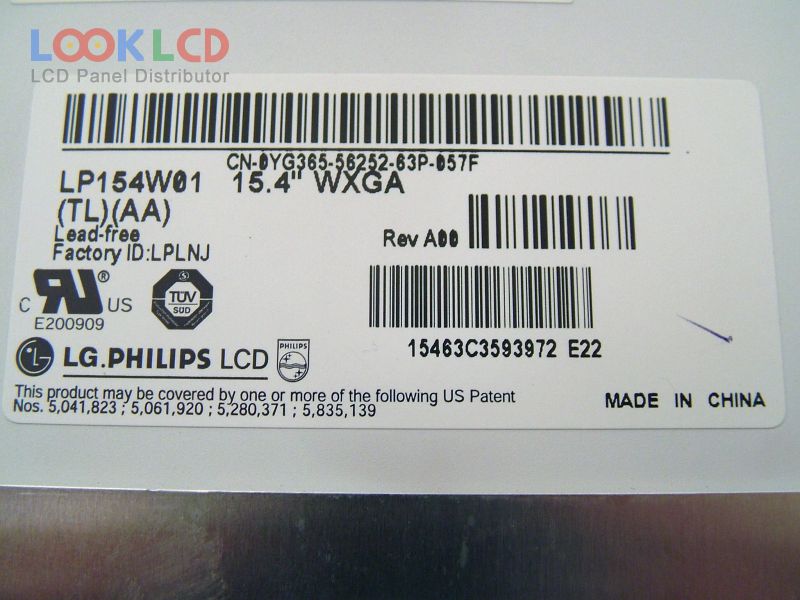

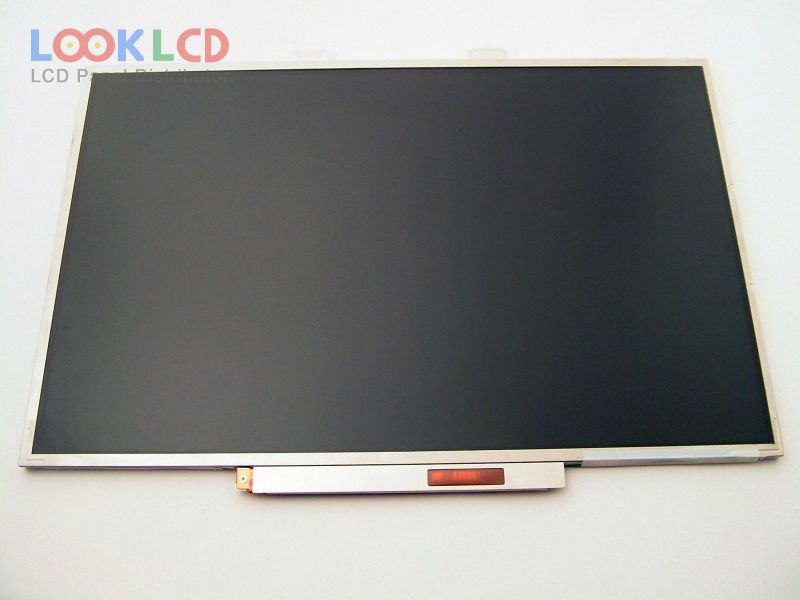

| Uimhir Pháirt | LP154W01-TLAA |
| Branda | LG Display |
| Méid | 15.4 |
| Iarratas | NBPC |
| Rún | 1280×800 |
| Comhdhéanamh | LCM |
| Gile | 170 |
| CR | 300:1 |
| Dathanna | 262K |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | LG.Philips LCD |
| múnla painéil | LP154W01-TLAA 7 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 15.4 inch |
| taifeach | 1280(RGB)×800 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 331.2×207 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 170 cd/m² (Typ.) |
| cóimheas codarsnachta | 300:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193145% |
| am freagartha | 30 (Typ.)(Tr+Td) |
| uillinn féachana | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 1 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 30 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
