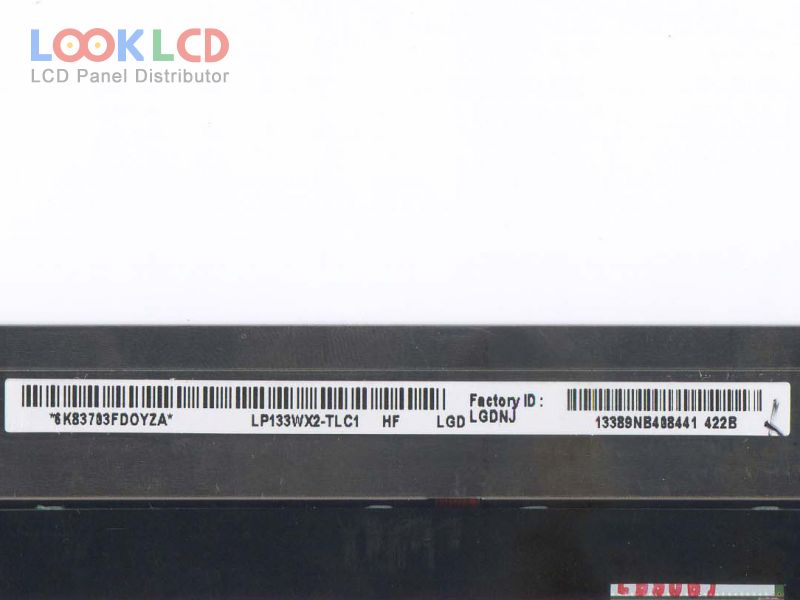

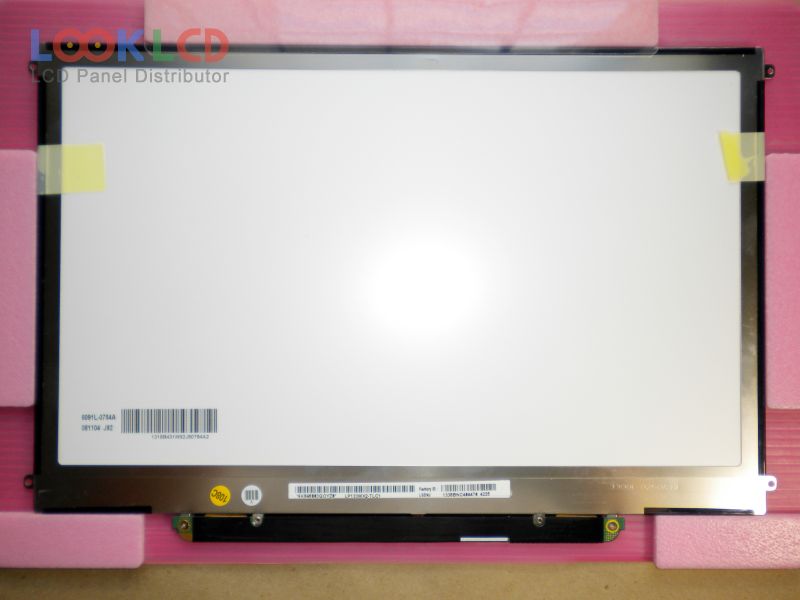

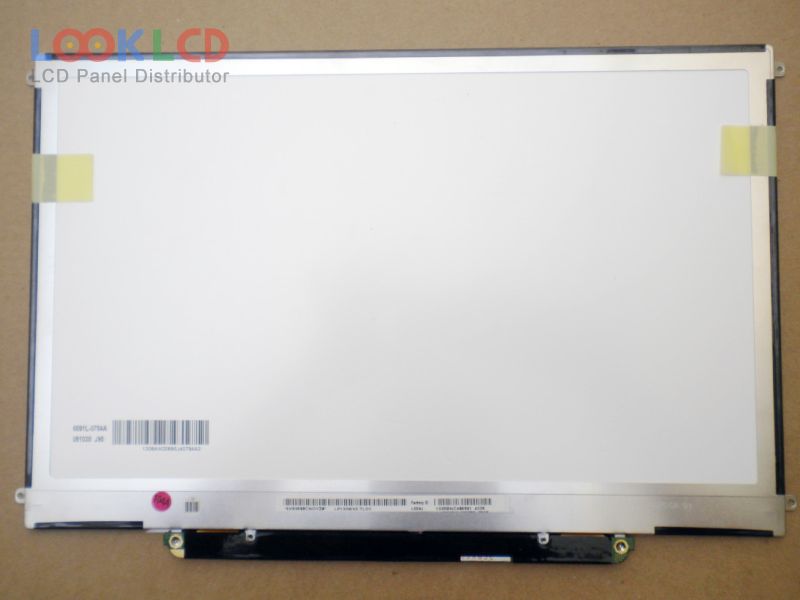

| Uimhir Pháirt | LP133WX2-TLC1 |
| Branda | LG Display |
| Méid | 13.3 |
| Iarratas | NBPC |
| Rún | 1280×800 |
| Comhdhéanamh | LCM |
| Gile | 275 |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | LG.Philips LCD |
| múnla painéil | LP133WX2-TLC1 6 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 13.3 inch |
| taifeach | 1280(RGB)×800 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 286.08×178.8 mm |
| imlíne | 307.38×203.1×3.6 mm |
| stíl cruth | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| dromchla | Glare (Haze 0%), Hard coating (2H), Antireflection |
| gile | 275 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193145% |
| am freagartha | 16 (Typ.)(Tr+Td) |
| uillinn féachana | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 9S6PWLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 30 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
