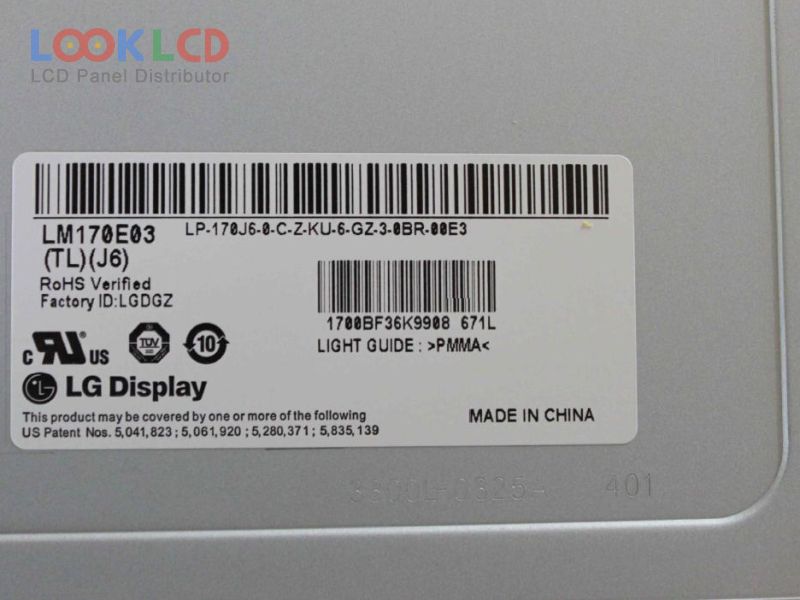

| Uimhir Pháirt | LM170E03-TLJ6 |
| Branda | LG Display |
| Méid | 17.0 |
| Iarratas | DMPC |
| Rún | 1280×1024 |
| Comhdhéanamh | LCM |
| Gile | 250 |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | LG Display |
| múnla painéil | LM170E03-TLJ6 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 17.0 inch |
| taifeach | 1280(RGB)×1024 , SXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 337.92×270.336 mm |
| imlíne | 358.5×296.5 mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 250 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (6-bit + Hi-FRC), CIE193173% |
| am freagartha | 1.2/3.8 (Typ.)(Tr/Td) |
| uillinn féachana | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |

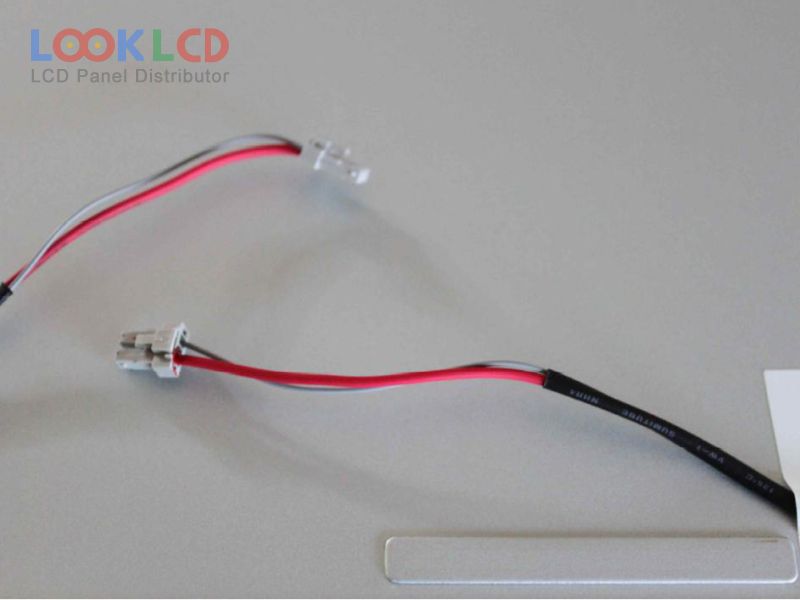

| cineál lampa | 2 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (2 ch, 8-bit), 30 pins |
| voltas ionchuir | 5.0V (Typ.) |
| iarratas | DMPC |
