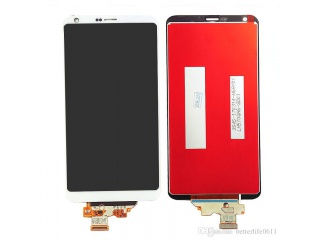

| Uimhir Pháirt | LH570QH6-SD01 |
| Branda | LG Display |
| Méid | 5.7 |
| Iarratas | Mobile Phone |
| Rún | 1440×2880 |
| Comhdhéanamh | Assembly , a-Si TF |
| Gile | |
| CR | 1500:1 |
| Dathanna | 16.7M |
| Cúlsolas | 4S3P |
| Comhéadan | MIPI |
| monaróir | LG Display |
| méid scáileáin | 5.7 inch |
| uimhir picteilín | 1440(RGB)×2880 564PPI |
| limistéar gníomhach(mm) | 64.8 × 129.6 (H×V) |
| limistéar bezel (mm) | - |
| luminance | 500 cd/m² (Typ.) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| radharc maith ag | Symmetry |
| doimhneacht dath | 16.7M 85% NTSC |
| mais | 26.6±2.7g |
| ráta athnuachana | 60Hz |
| cineál comhartha | MIPI (4 data lanes) , 54 pins Connector |
| soláthar voltais | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| uas. rátálacha | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| ainm samhail | LH570QH6-SD01 |
| cineál scáileáin | Assembly , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 68.72 × 145.7 (H×V×D) |
| cóireáil | Hard coating |
| cóimheas codarsnachta | 1500 : 1 (Typ.) (TM) |
| freagra | 25 (Typ.)(Tr+Td) ms |
| modh oibre | - |
| cúlsolas | 4S3P WLED , No Driver |
| a úsáidtear le haghaidh | Mobile Phone |
| scáileán tadhaill | PCAP |
