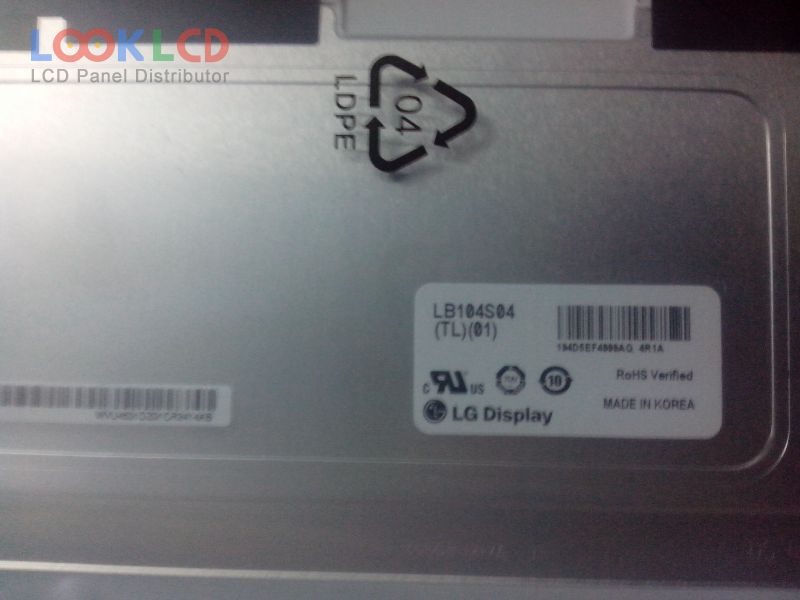

| Uimhir Pháirt | LB104S04-TL01 |
| Branda | LG Display |
| Méid | 10.4 |
| Iarratas | IA |
| Rún | 800×600 |
| Comhdhéanamh | LCM |
| Gile | 250 |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | LG Display |
| múnla painéil | LB104S04-TL01 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 10.4 inch |
| taifeach | 800(RGB)×600 , SVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 211.2×158.4 mm |
| imlíne | 224.5×172×7.1 mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 250 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193145% |
| am freagartha | 4/6 (Typ.)(Tr/Td) |
| uillinn féachana | 70/70/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 30 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | IA |
