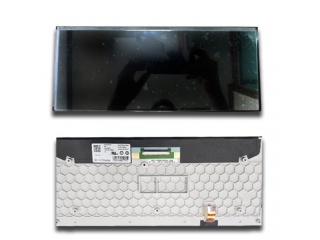

| Uimhir Pháirt | LA123WF4-SL02 |
| Branda | LG Display |
| Méid | 12.3 |
| Iarratas | Automotive Display |
| Rún | 1920×720 |
| Comhdhéanamh | LCM, a-Si TFT-LCD |
| Gile | |
| CR | 900:1 |
| Dathanna | 16.7M |
| Cúlsolas | 11S4P |
| Comhéadan | |
| monaróir | LG Display |
| ainm samhail | LA123WF4-SL02 |
| méid scáileáin | 12.3 inch |
| cineál scáileáin | LCM, a-Si TFT-LCD |
| uimhir picteilín | 1920(RGB)×720 167PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 292.032 × 109.512 (H×V) |
| imlíne (mm) | 310.4 × 128.9 (H×V×D) |
| limistéar bezel (mm) | - |
| cóireáil | Hard coating |
| luminance | 650 cd/m² (Typ.) |
| cóimheas codarsnachta | 900 : 1 (Typ.) (TM) |
| uillinn féachana | 89/89/89/89 (Min.)(CR≥10) |
| freagra | 30 (Typ.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | IPS, Normally Black, Transmissive |
| doimhneacht dath | 16.7M 86% NTSC |
| cúlsolas | 11S4P WLED , 10K hours , No Driver |
| mais | 481/496g (Typ./Max.) |
| a úsáidtear le haghaidh | Automotive Display |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
