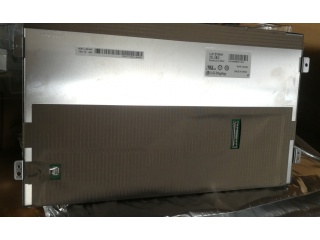

| Uimhir Pháirt | LA121WH1-SL02 |
| Branda | LG Display |
| Méid | 12.1 |
| Iarratas | Automotive Display |
| Rún | 1280×720 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | 8S3P |
| Comhéadan | LVDS |
| monaróir | LG Display |
| ainm samhail | LA121WH1-SL02 |
| méid scáileáin | 12.1 inch |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| uimhir picteilín | 1280(RGB)×720 (WXGA) 121PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 266.88 × 150.12 (H×V) |
| imlíne (mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| limistéar bezel (mm) | 269.65 × 152.55 (H×V) |
| cóireáil | Antiglare |
| luminance | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000 : 1 (Typ.) (TM) |
| uillinn féachana | 80/80/80/80 (Min.)(CR≥10) |
| freagra | 17/13 (Max.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | IPS, Normally Black, Transmissive |
| doimhneacht dath | 16.7M 62% NTSC |
| cúlsolas | 8S3P WLED , 10K hours , No Driver |
| mais | 417±5g |
| a úsáidtear le haghaidh | Automotive Display |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |

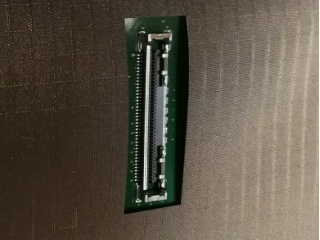

| cineál comhartha | LVDS (1 ch, 8-bit) , 40 pins Connector |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| B121EW09 V4 | AUO | 12.1 | 1280×800 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| LMG9980ZWCC-01 | KOE | 12.1 | 800×600 |
| LP121X05-A2 | LG Display | 12.1 | 1024×768 |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LTD121EA4X | TOSHIBA | 12.1 | 1024×768 |
| LTD121EDFN | TOSHIBA | 12.1 | 1024×768 |
| LTM12C285 | TOSHIBA | 12.1 | 800×600 |
| NL8060BC31-27 | NLT | 12.1 | 800×600 |
| NL8060BC31-41D | NLT | 12.1 | 800×600 |
