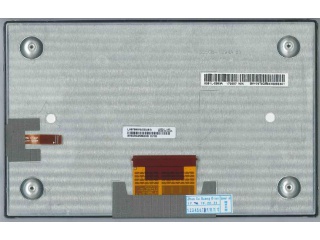

| Uimhir Pháirt | LA070WV6-SD02 |
| Branda | LG Display |
| Méid | 7.0 |
| Iarratas | Automotive Display |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | 5S2P |
| Comhéadan | Parallel |
| branda painéil | LG Display |
| méid an phainéil | 7.0" |
| taifeach | 800(RGB)×480, WVGA, 133PPI |
| limistéar taispeána | 152.4(W)×91.44(H) mm |
| méid imlíne | 166.6(W)×105.8(H) ×10.5(D) mm |
| gile | 610 cd/m² (Typ.) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | 16.7M 60% NTSC |
| minicíocht | 60Hz |
| meáchan painéal | 180/185g (Typ./Max.) |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit) , 66 pins FPC |
| voltas ionchuir | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| múnla painéil | LA070WV6-SD02 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 155.0(W)×94.0(H) mm |
| dromchla | Antiglare (Haze 25%), Hard coating (3H) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| mód taispeána | IPS, Normally Black, Transmissive |
| am freagartha | 15/10 (Typ.)(Tr/Td) |
| cineál lampa | 5S2P WLED , 20K hours , Without Driver |
| scáileán tadhaill | Without |
| iarratas | Automotive Display |
