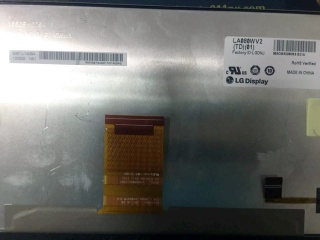

| Uimhir Pháirt | LA070WV2-TD01 |
| Branda | LG Display |
| Méid | 7.0 |
| Iarratas | Automotive Display |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | 9S2P |
| Comhéadan | Parallel |
| branda painéil | LG Display |
| múnla painéil | LA070WV2-TD01 |
| méid an phainéil | 7.0" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 800(RGB)×480, WVGA, 133PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 152.4(W)×91.44(H) mm |
| oscailt bezel | 154.45(W)×93.24(H) mm |
| méid imlíne | 169(W)×103.45(H) mm |
| dromchla | Antiglare |
| gile | 550 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 70/70/50/60 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | - |
| am freagartha | 6/9 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 262K 64% NTSC |
| cineál lampa | 9S2P WLED , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 165/175g (Typ./Max.) |
| iarratas | Automotive Display |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| voltas ionchuir | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
