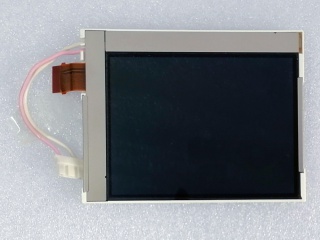

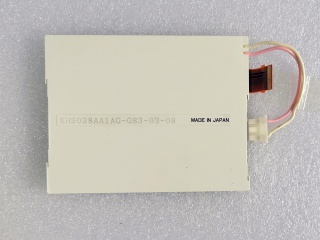

| Uimhir Pháirt | KHS038AA1AG-G83 |
| Branda | Kyocera |
| Méid | 3.8 |
| Iarratas | Industrial |
| Rún | 240×320 |
| Comhdhéanamh | LCM , CSTN-LCD |
| Gile | |
| CR | 15:1 |
| Dathanna | Color |
| Cúlsolas | 1 |
| Comhéadan | Parallel |
| monaróir | Kyocera |
| méid scáileáin | 3.8 inch |
| uimhir picteilín | 240(RGB)×320 (QVGA) 105PPI |
| limistéar gníomhach(mm) | 57.58 × 76.78 (H×V) |
| luminance | 16 cd/m² (Typ.) |
| uillinn féachana | 50/45/20/30 (Typ.)(CR≥2) |
| radharc maith ag | - |
| doimhneacht dath | Color |
| mais | - |
| ráta athnuachana | 75Hz |
| cineál comhartha | Parallel Data (1ch, 8-bit) FPC |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ainm samhail | KHS038AA1AG-G83 |
| cineál scáileáin | LCM , CSTN-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | - |
| cóimheas codarsnachta | 15 : 1 (Typ.) (TM) |
| freagra | 250/150 (Typ.)(Tr/Td) ms |
| modh oibre | STN, Normally Black, Transflective |
| cúlsolas | 1 pcs CCFL , No Driver |
| a úsáidtear le haghaidh | Industrial |
| scáileán tadhaill | - |
