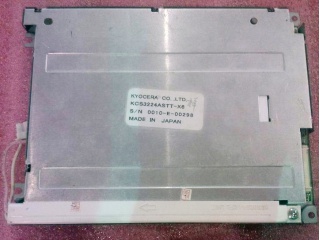

| Uimhir Pháirt | KCS3224ASTT-X6 |
| Branda | Kyocera |
| Méid | 5.7 |
| Iarratas | Industrial |
| Rún | 320×240 |
| Comhdhéanamh | CSTN-LCD , LCM |
| Gile | |
| CR | 25:1 |
| Dathanna | Color |
| Cúlsolas | - |
| Comhéadan | Parallel |
| branda | Kyocera |
| méid trasnánach | 5.7 inch |
| formáid picteilín | 320(RGB)×240 [QVGA] 70PPI |
| limistéar gníomhach | 115.2(H)×86.4(V) mm |
| luminance | - |
| treo amharc | - |
| uillinn féachana | 50/50/30/30 (Typ.)(CR≥2) |
| dath tacaíochta | Color |
| meáchan | - |
| ráta fhráma | 75Hz |
| cineál comhéadan | Parallel Data (1ch, 8-bit) Connector |
| soláthar leictreachas | 5.0V (Typ.) |
| timpeallacht | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Mionsamhail | KCS3224ASTT-X6 |
| cineál | CSTN-LCD , LCM |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | - |
| cóimheas codarsnachta | 25:1 (Typ.) (TM) |
| am freagartha | 220/110 (Typ.)(Tr/Td) |
| modh oibriúcháin | STN, Normally Black, Transmissive |
| foinse solais | |
| deartha le haghaidh | Industrial |
| painéal tadhaill | Without |
| AM-320240N1TMQW-T30H-D(R) | AMPIRE | 5.7 | 320×240 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| COM57H5M10XRC | ORTUSTECH | 5.7 | 640×480 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| G057VN01 V2 | AUO | 5.7 | 640×480 |
| LM32019T | SHARP | 5.7 | 320×240 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
