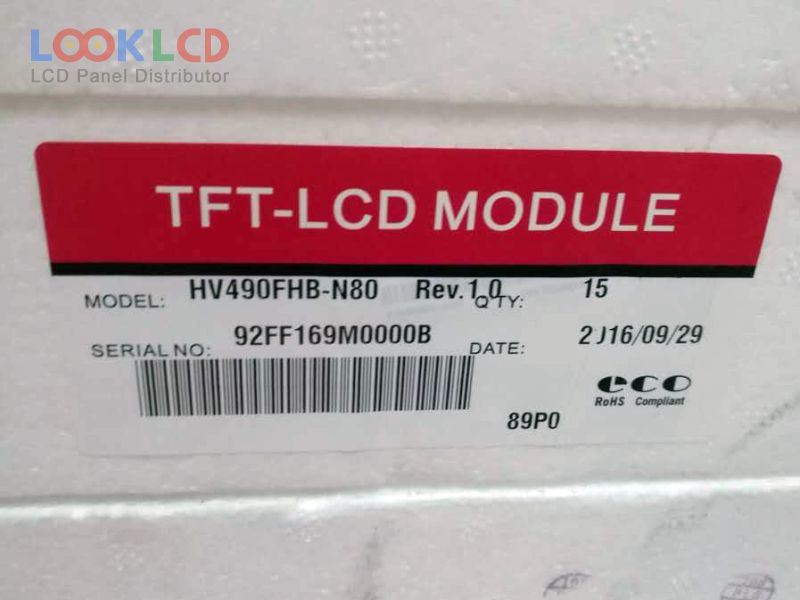

| Uimhir Pháirt | HV490FHB-N80 |
| Branda | BOE |
| Méid | 49 |
| Iarratas | LCTV |
| Rún | 1920×1080 |
| Comhdhéanamh | CELL |
| Gile | 0 |
| CR | 1200:1 |
| Dathanna | 16.7M |
| Cúlsolas | No B/L |
| Comhéadan | LVDS |
| branda painéil | BOE |
| múnla painéil | HV490FHB-N80 |
| cineál painéil | a-Si TFT-LCD , CELL |
| méid an phainéil | 49 inch |
| taifeach | 1920(RGB)×1080 , FHD |
| mód taispeána | ADS, Normally Black, Transmissive |
| limistéar gníomhach | 1073.78×604 mm |
| dromchla | Antiglare (Haze 1%) |
| transmissivity | 6.3% (Typ.)(with Polarizer) |
| cóimheas codarsnachta | 1200:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (8-bit), CIE193173% |
| am freagartha | 8 (Typ.)(G to G) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| comhéadan comhartha | LVDS (2 ch, 8-bit), 51 pins |
| voltas ionchuir | 12.0V (Typ.) |
| iarratas | LCTV |
