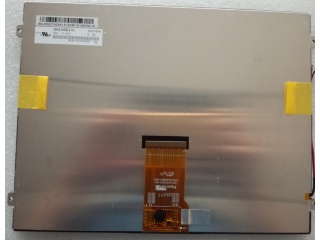

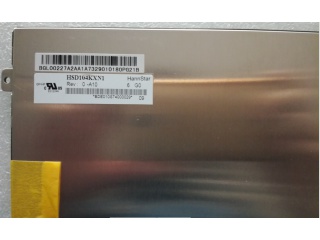

| Uimhir Pháirt | HSD104KXN1-A10 |
| Branda | HannStar |
| Méid | 10.4 |
| Iarratas | Automotive Display |
| Rún | 1024×768 |
| Comhdhéanamh | LCM, a-Si TFT-LCD |
| Gile | |
| CR | 900:1 |
| Dathanna | 262K/16.2M |
| Cúlsolas | 4S8P |
| Comhéadan | |
| monaróir | HannStar |
| ainm samhail | HSD104KXN1-A10 |
| méid scáileáin | 10.4 inch |
| cineál scáileáin | LCM, a-Si TFT-LCD |
| uimhir picteilín | 1024(RGB)×768 (XGA) 123PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 211.2 × 158.4 (H×V) |
| imlíne (mm) | 236 × 174.3 × 7 (H×V×D) |
| limistéar bezel (mm) | 213.2 × 160.4 (H×V) |
| cóireáil | Antiglare, Hard coating (3H) |
| luminance | 600 cd/m² (Typ.) |
| cóimheas codarsnachta | 900 : 1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| freagra | 30 (Typ.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | IPS Pro, Normally Black, Transmissive |
| doimhneacht dath | 262K/16.2M |
| cúlsolas | 4S8P WLED , 30K hours , No Driver |
| mais | 316g |
| a úsáidtear le haghaidh | Automotive Display |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
