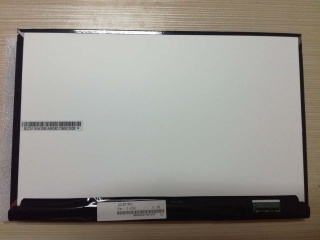

| Uimhir Pháirt | HSD101PUW1-C30 |
| Branda | HannStar |
| Méid | 10.1 |
| Iarratas | Pad & Tablet |
| Rún | 1920×1200 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | |
| branda | HannStar |
| Mionsamhail | HSD101PUW1-C30 |
| méid trasnánach | 10.1 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1920(RGB)×1200 [WUXGA] 225PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 216.576(H)×135.36(V) mm |
| imlíne dim. | - |
| luminance | - |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| modh oibriúcháin | IPS Pro, Normally Black, Transmissive |
| dath tacaíochta | 16.7M 50% NTSC |
| foinse solais | WLED , 15K hours |
| meáchan | - |
| deartha le haghaidh | Pad & Tablet |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| timpeallacht | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
